HSN3-32 AC: Acoustical Type N Roof Decking

Acoustical HSN3-32 decking can provide sound attenuation in buildings where the deck is exposed to the interior. Verco HSN3-32 AC acoustical is supplied with acoustical insulation battens for sound absorption.

Verco HSN3-32 AC

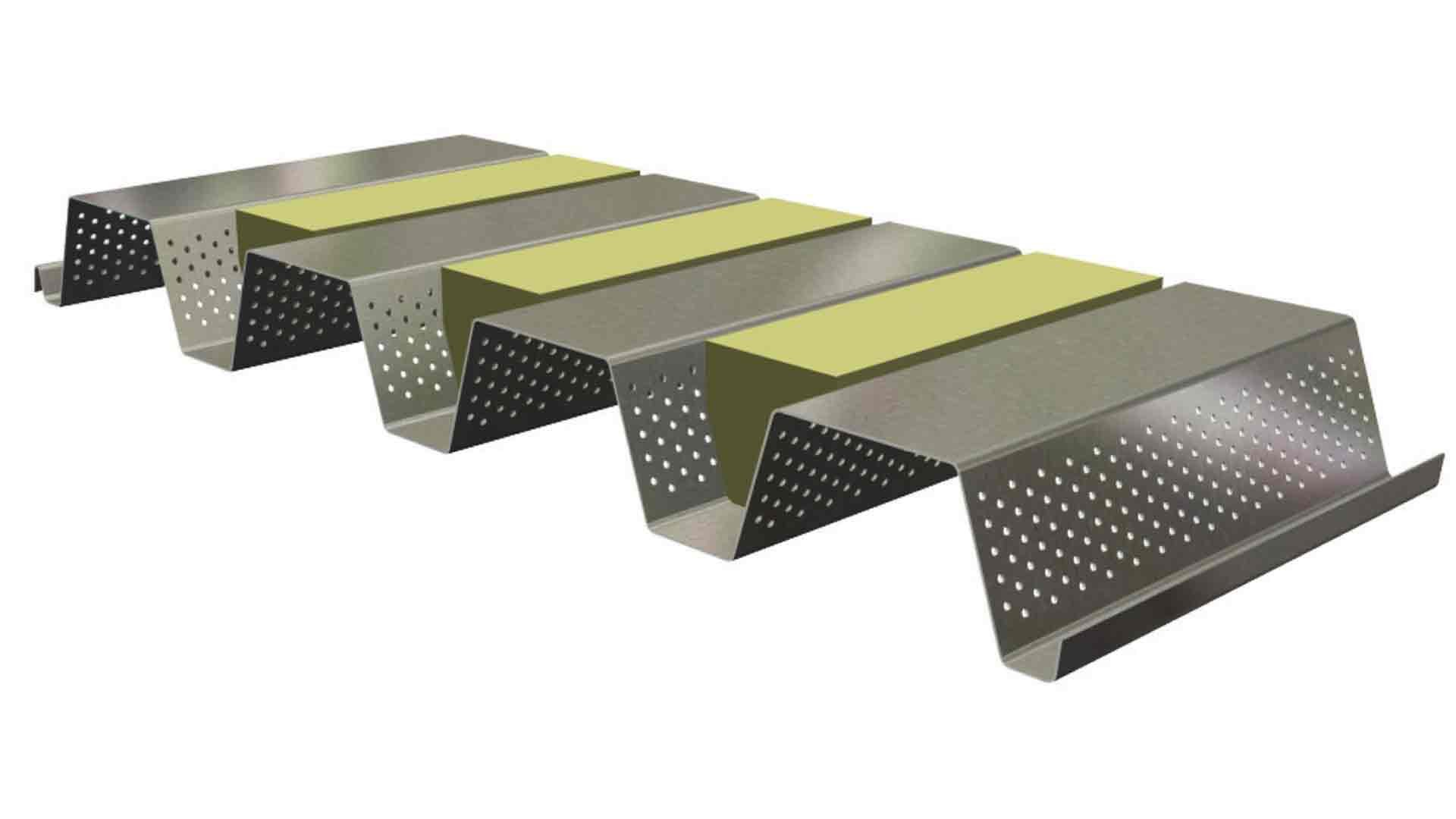

HSN3-32 AC Acoustical Deck - 3" Deep

The use of all acoustical deck is limited to non-fire-resistive assemblies. Verco’s fluted acoustical N deck is made by perforating the webs of a standard Verco deck profile. HSN3-32 AC metal deck types has perforations in 10 of the 12 webs. The webs adjacent to the sidelaps of HSN3-32 AC are not perforated. The roofing contractor installs the acoustical insulation batts(supplied with the deck) prior to the placement of roofing insulation.

HSN3-32 AC is NOT in stock. Custom ordered jobs only. Minimum quantities apply.

  • Pick Up Locations in Ontario, California and Phoenix, Arizona
  • Delivery Is Available Throughout The USA

PRODUCT DATA

Deck Type: Acoustical Roof Deck

Panel Type: HSN3-32 AC

Available Gauges: 22, 20, 18, 16

Available Sheet Lengths: 2' to 40'

Available Finishes:

  • Galvanized G-60
  • Galvanized G-90
  • Prime Painted Gray

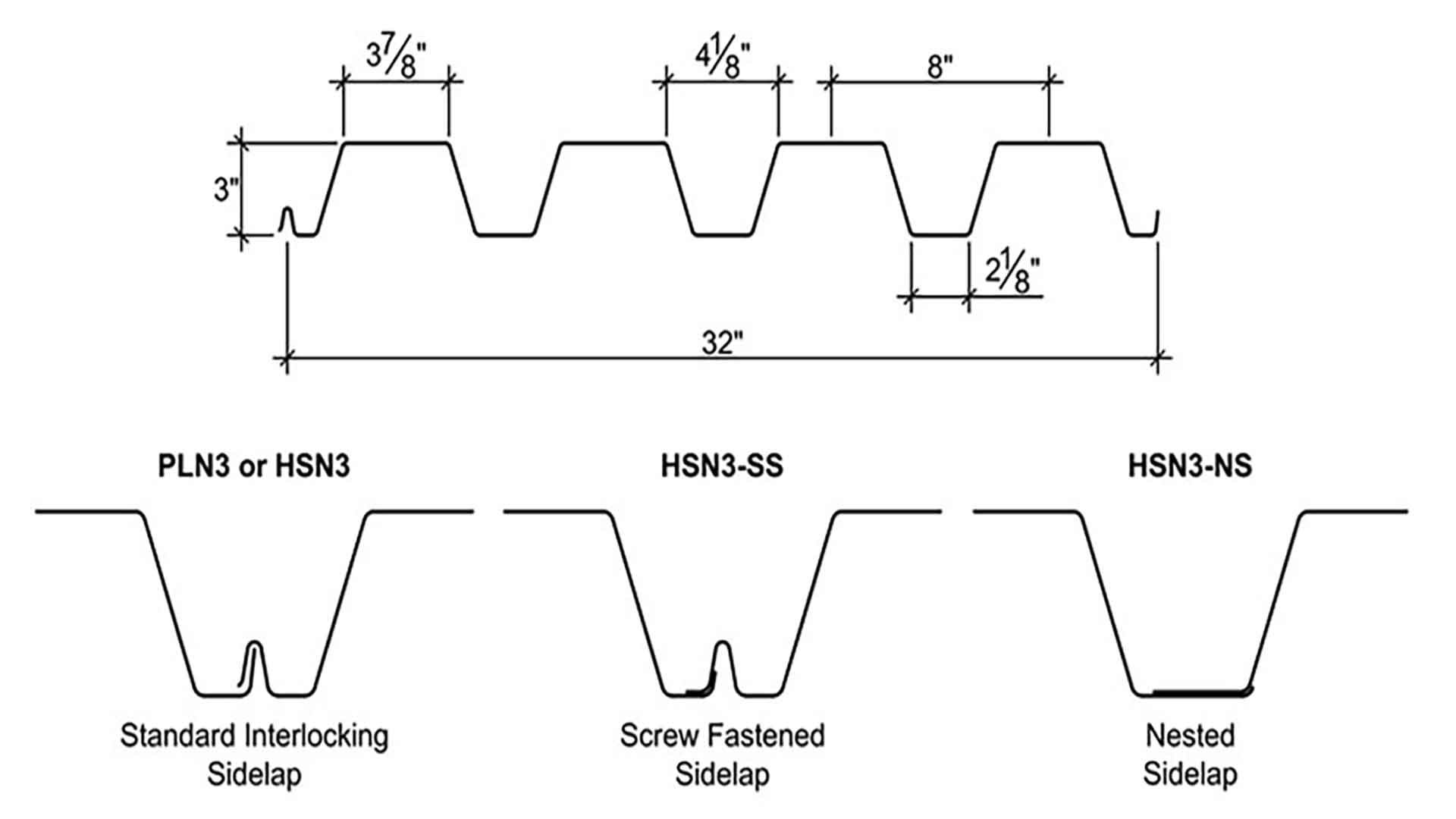

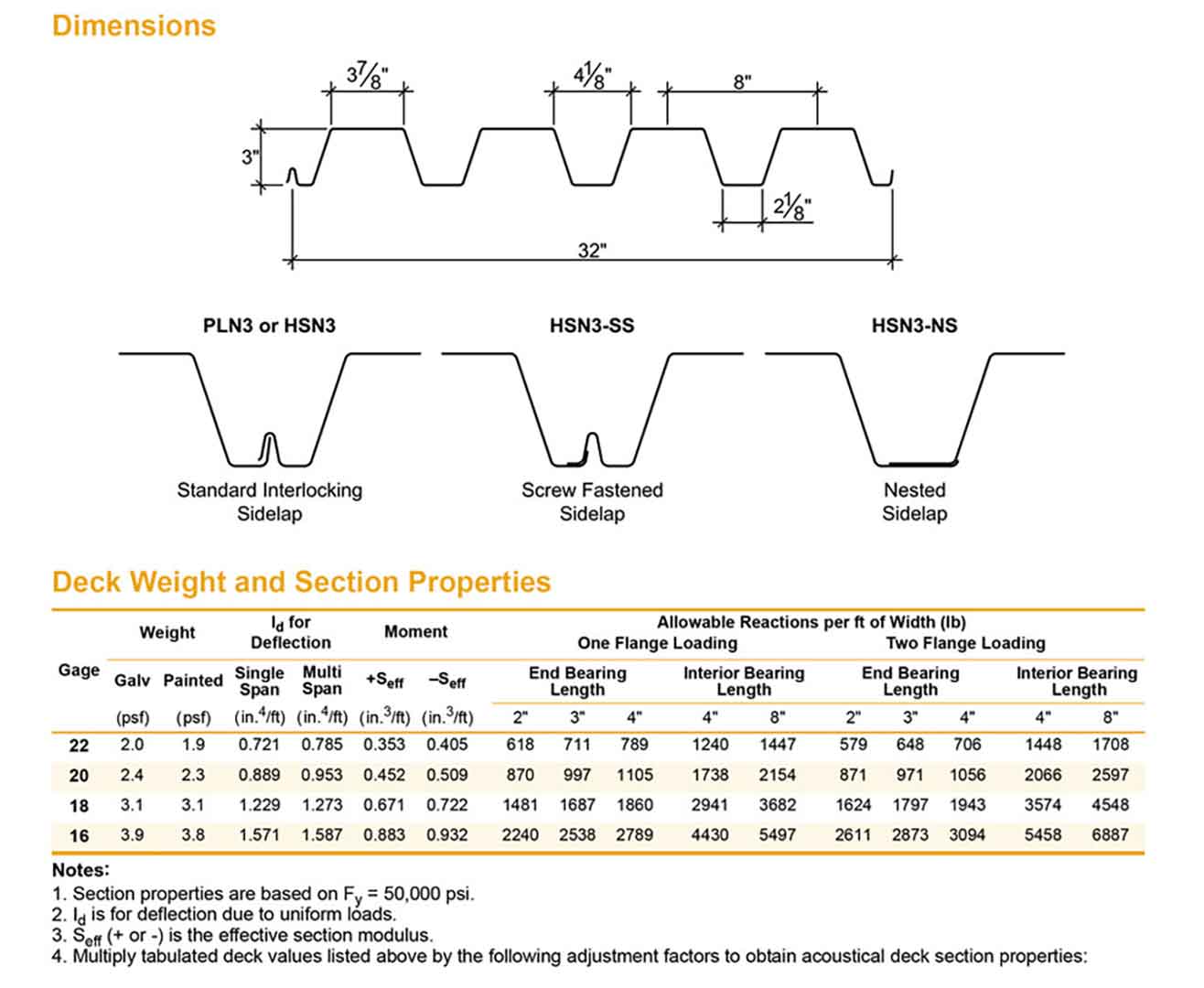

HSN3-32 AC ACOUSTICAL DECK DIMENSIONS

Rib Height: 3"

Rib Distance (Pitch): 8" Pitch

Width: 32"

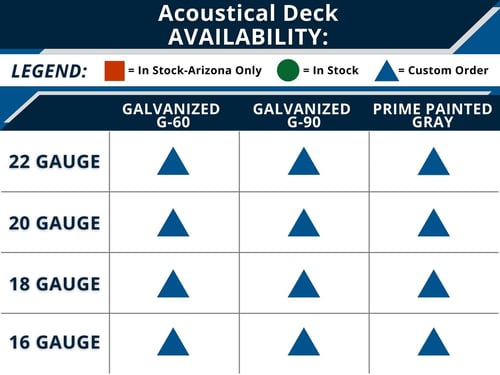

Material Availability:acoustical-deck-graph



button-punch-man

Button Punch Tool

Button punch tool available for button punching or crimping seams of metal deck for easier welding.

Free loaner tools are available with the purchase of metal decking.
