Dovetail roof deck is a structural metal decking that's designed to have a ceiling that looks finished.
Verco 2.0D Dovetail deck is offered with a variety of options to meet a broad range of project requirements. Options for Verco and Vulcraft Dovetail deck include acoustical as well as non-acoustical versions, and a variety of finishes including galvanized or primer painted over galvanized. 2.0D DoveTail Deck is offered in up to 16 gauge.
Acoustical Dovetail deck is a custom ordered product. Typical lead times is 4 to 8 weeks.

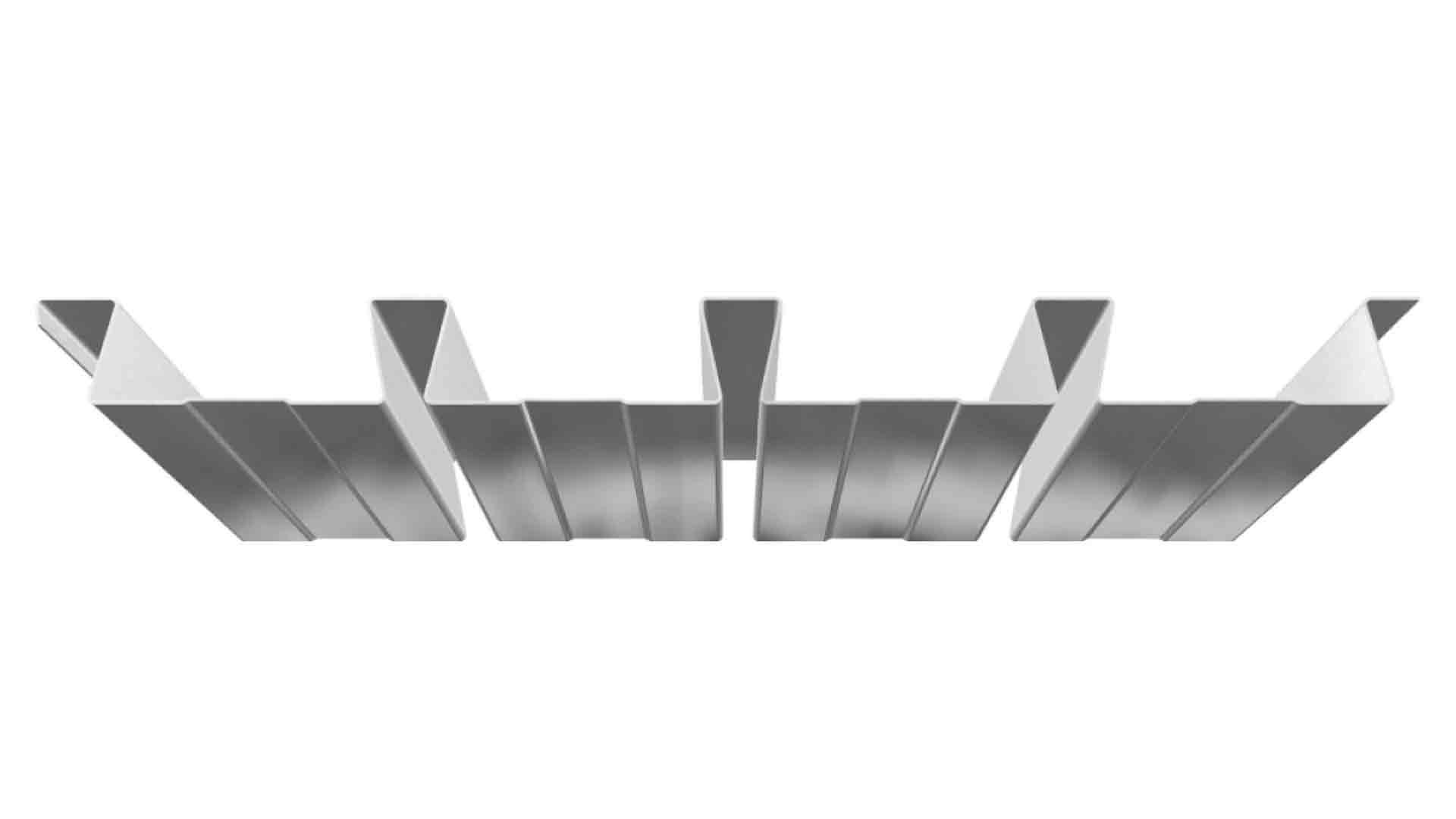

Deck Type: Dovetail Deck
Panel Type: 2.0D Non Acoustical
Rib Height: 2"
Rib Distance (Pitch): 6 1/8" Pitch
Width: 24 .5" Coverage
Available Gauges: 22, 20, 18, 16
Available Sheet Lengths: 6' to 42'
ASD Data Sheet For Dovetail Non-Acoustical 2" Deck
LRFD Data Sheet For Dovetail Non-Acoustical 2" Deck
Roof Deck Catalog - VR4 Legacy
UL Reports - Fire Rated Assemblies
We are ready to provide you with shop drawings and metal deck packages for your next project. We can provide shop drawings that would include CAD drawings, metal deck cut list, gauge edge form, and shear stud layout.
