W2-36 Formlok: 2" Metal Floor Deck

Verco W2-36 Formlok® is a button punch side lap style of composite floor decking. It's a medium span metal decking panel that's designed to have concrete poured on top of it. Same day pick up or next day delivery.

get a quote see more floor deck options

Everything That You Need To Know About Floor Decking
Read blogs, watch videos, read reports & much more

Looking For Metal Roof Deck? We Offer A Variety Of Gauges, Lengths, and Depths.

Shop roof deck here

2" Deep - Type B Composite Metal Floor Deck

W2-36 Formlok™

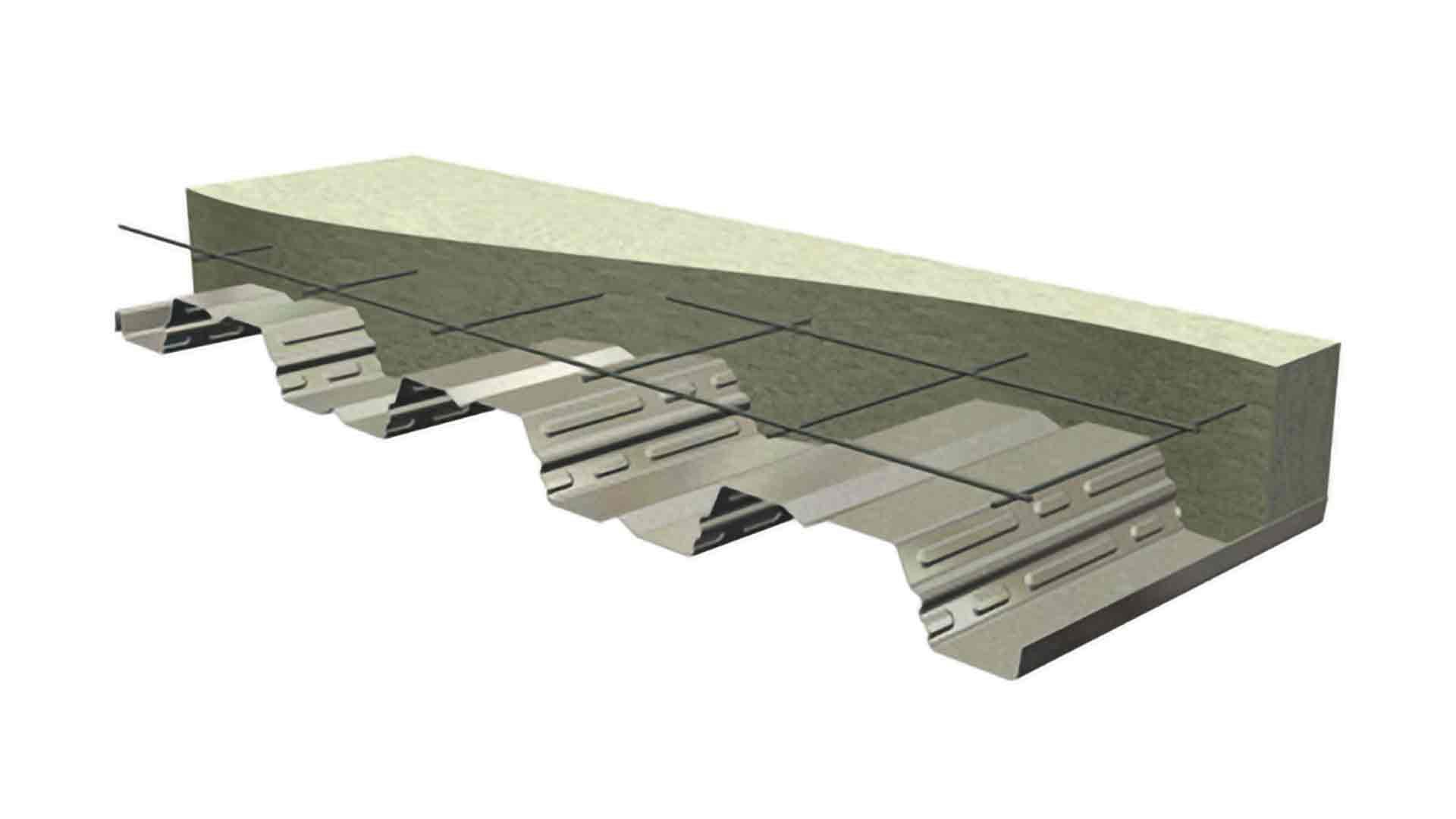

Verco W2-36 Formlok™ metal floor deck provides savings by the elimination of temporary forms and shoring. It allows for immediate use of the metal deck as a working platform for all trades. Verco FORMLOK floor decks provide positive reinforcing of the one-way slab due to the mechanical bond between the deck and the concrete thus creating an effective composite slab.

Verco W2-36 Formlok is 2" deep and is in stock in galvanized G60. It can be custom ordered in G90 or phosphatized/prime painted finishes.

Immediate availability of B floor decking in lengths ranging from 20'-2" to 35'-6". Metal floor deck can be custom run to longer lengths if needed.

  • Pick Up Locations in Ontario, California and Phoenix, Arizona
  • Delivery Is Available Throughout The USA

Dimensions

plw2-formlok download dimensions

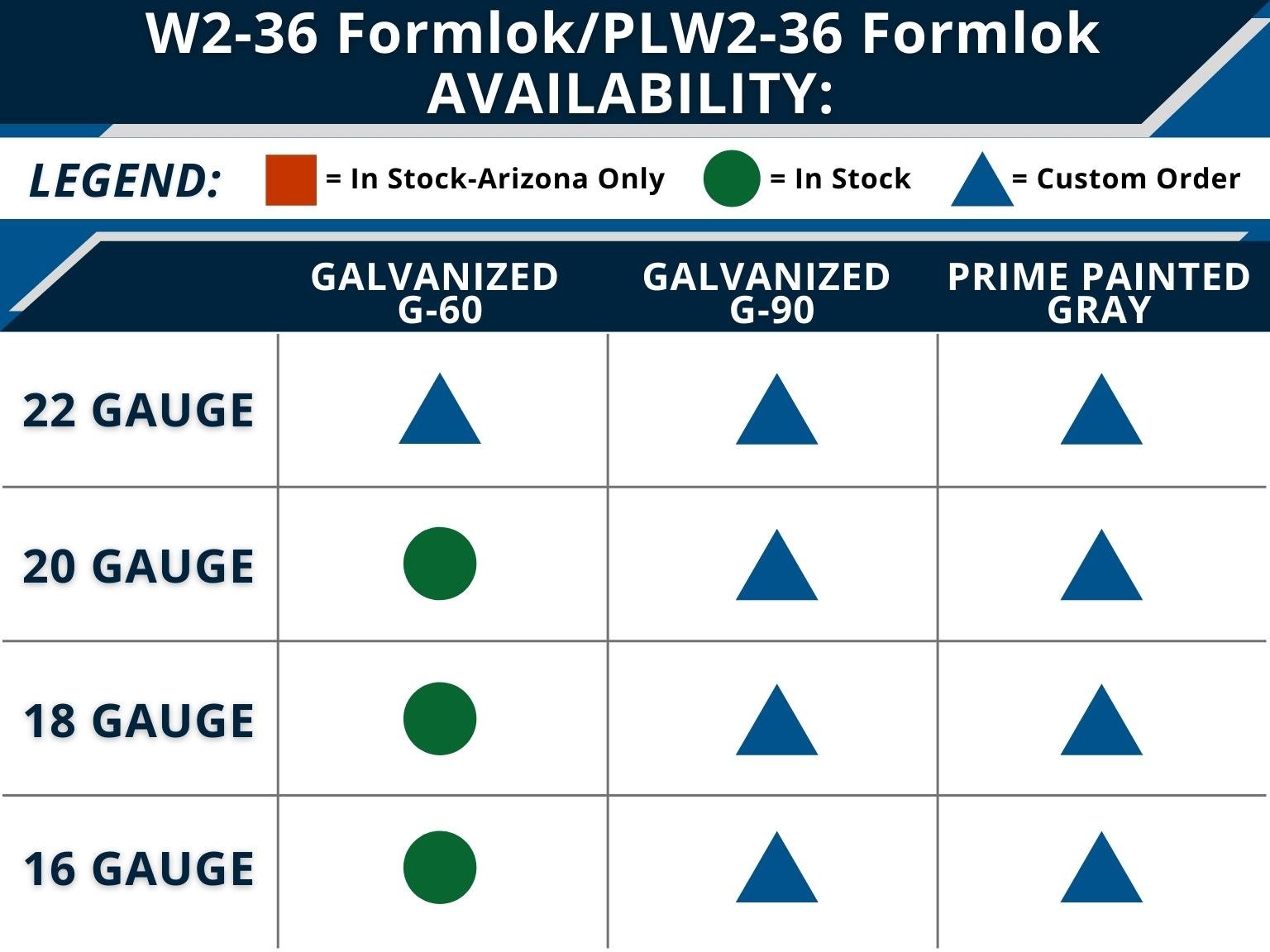

plw2-formlok-graph



Product Data

Deck Type: Composite Floor Deck

Panel Type: W2-36 Formlok™

Available Gauges: 22, 20, 18, 16

Available Finishes:

  • Galvanized G-60
  • Galvanized G-90
  • Phosphatized/Prime Painted

W2-36 Formlok™ Dimensions

Rib Height: 2"

Rib Distance (Pitch): 12" Pitch

Available Lengths: 20'-2" to 35'-6"

Width: 36"

Product Documents

ASD Data Sheet For W2-36/PLW2-36 Formlok™

LRFD Data Sheet For W2-36/PLW2-36 Formlok™

IAPMO UES Report

Los Angeles Research Report

Floor Deck Catalog - VF5 Legacy

Autocad

Floor Deck Design Tools

UL Reports - Fire Rated Assemblies

Factory Mutual Reports

Steel Deck Institute (SDI)

Environmental

Button Punch Tool

Button punch tool available for button punching or crimping seams of metal deck for easier welding.

Free loaner tools are available with the purchase of metal decking.

Buy Now Rent Now Free Loaner Tool
