PLB-36 Metal Roof Deck: 1.5" Punchlok II

The difference between the PLB-36 profile and HSB-36 profile is the method of sidelap attachment. You will need to use a Punchlok II tool for the sidelap attachment. Loaner tools will be provided with the purchase of Punchlok II metal decking. Same day pick up or next day delivery.

Get a quote Punchlok Loaner Tools

Everything you need to know about Verco PLB-36 Punchlok II
How To Install Punchlok II Metal Decking

How To Get A Punchlok II Tool For Verco And Vulcraft Metal Decking

Watch Now

B Deck - Verco Punchlok II

PLB-36™ - 1.5" Deep

PLB-36 and HSB-36 panels are identical in both geometry and material properties. The prefix "PL" designates a PunchLok II version of the B profile, while "HS" (high shear) indicates a top seam weld, button punch, or screw version of the same profile. When the job is specified as Punchlok II, then a Punchlok II tool must be used for the sidelap attachment. This method of attachment allows for higher shear values and must be done correctly or the building design could fail.

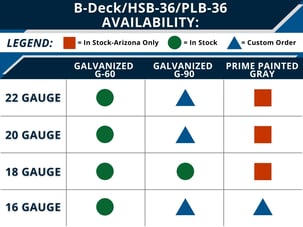

PLB-36 is good in stock in the following gauges 22, 20, 18, 16 Gauge.

Immediate availability of Punclok II roof deck in lengths ranging from 6'-2" to 35'-6". Verco PLB-36 can be custom run to longer lengths if needed.

  • Pick Up Locations in Ontario, California and Phoenix, Arizona
  • Delivery Is Available Throughout The USA

Dimensions

hsb-36-deck-profile Download Dimensions

B-Deck-Graph



Product Data

Deck Type: Punchlok II Roof Deck

Panel Type: PLB-36™ - 1.5" Deep

Available Gauges: 22, 20, 18, 16

Available Finishes:

  • Galvanized G-60
  • Galvanized G-90
  • Prime Painted Gray

Rib Height: 1 1/2"

Rib Distance (Pitch): 6" Pitch

Available Lengths: 6'-2" to 35'-6"

Width: 36"

Product Documents

ASD Data Sheet For HSB-36/PLB-36

LRFD Data Sheet For HSB-36/PLB-36

IAPMO UES Report

Los Angeles Research Report

Roof Deck Catalog - VR4 Legacy

Roof Structure Design Guide

Autocad

Roof Deck Design Tools

UL Reports - Fire Rated Assemblies

Factory Mutual Reports

Steel Deck Institute (SDI)

Environmental
