Verco B-36 Formlok® is a button punch side lap style of B floor decking. It's a short to medium span metal decking panel that's designed to have concrete poured on top of it. Same day pick up or next day delivery.
Looking For Metal Roof Deck? We Offer A Variety Of Gauges, Lengths, and Depths.

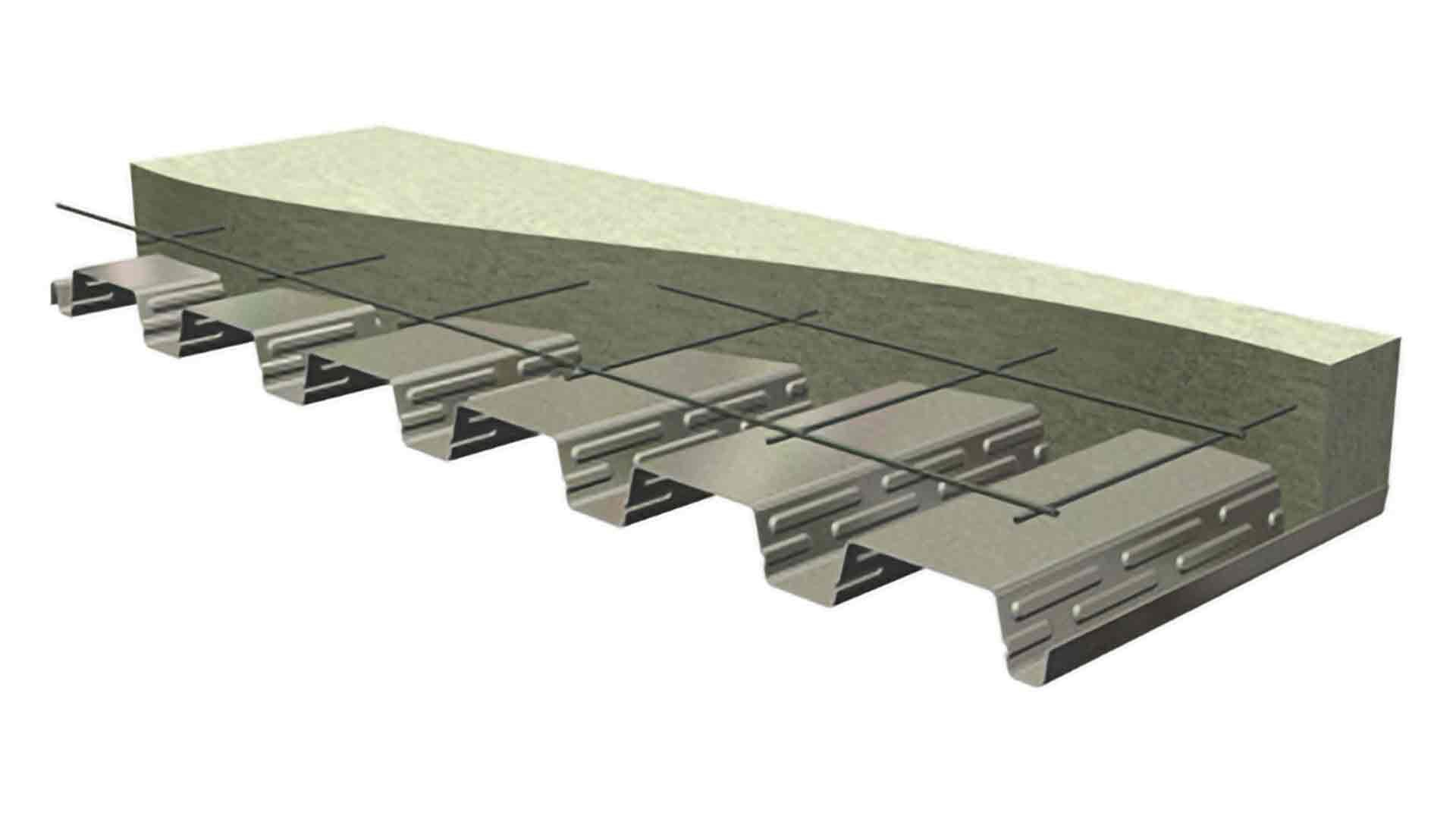

Verco B-36 Formlok™ metal floor deck provides savings by the elimination of temporary forms and shoring. It allows for immediate use of the metal deck as a working platform for all trades. Verco FORMLOK floor decks provide positive reinforcing of the one-way slab due to the mechanical bond between the deck and the concrete thus creating an effective composite slab.
B-36 Formlok is 1.5" deep and is in stock in galvanized G60. It can be custom ordered in G90 or phosphatized/prime painted finishes.
Immediate availability of B floor decking in lengths ranging from 2' to 35'. Metal floor deck can be custom run to longer lengths if needed.

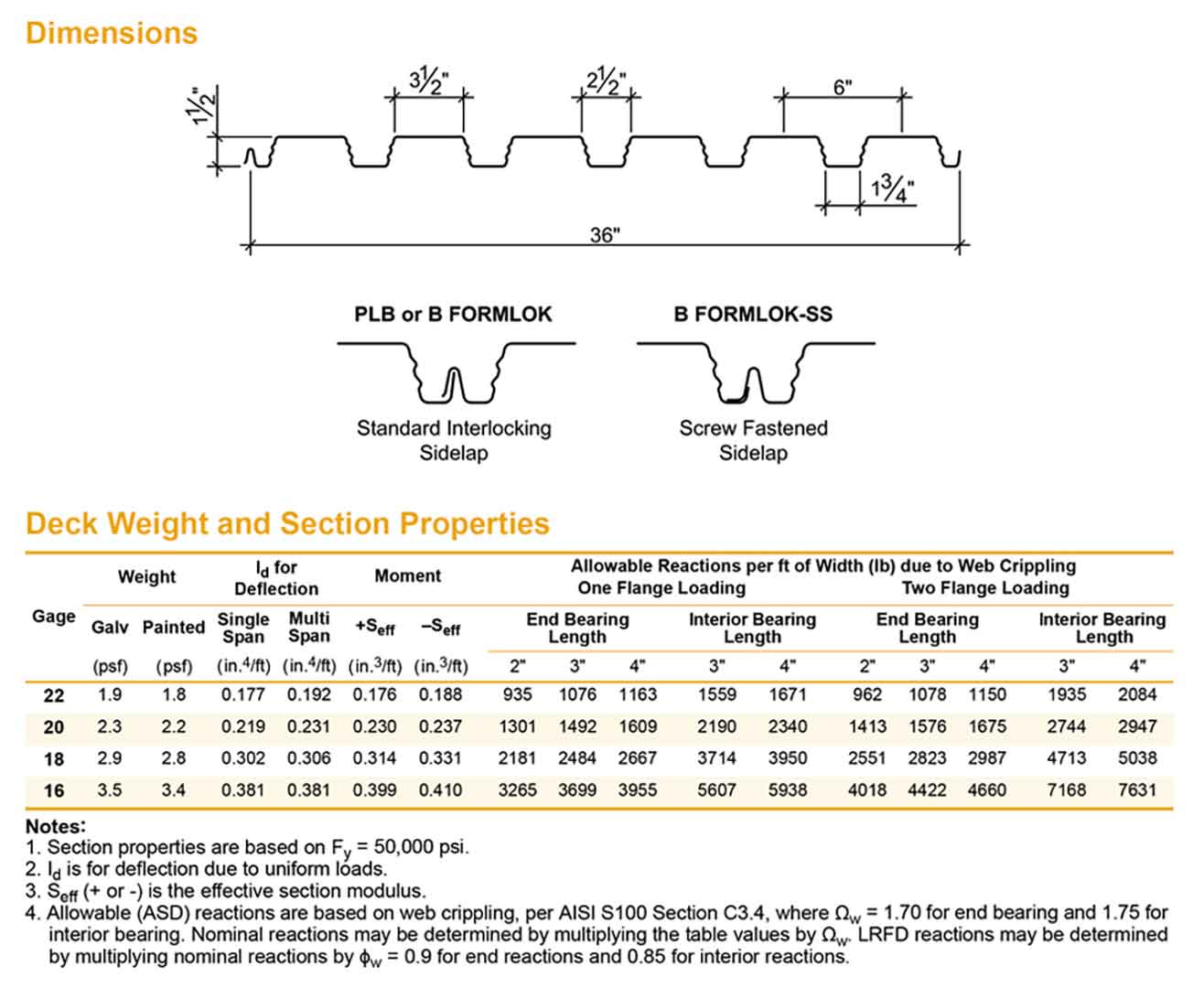

Deck Type: Composite Floor Deck
Panel Type: B-36 Formlok™

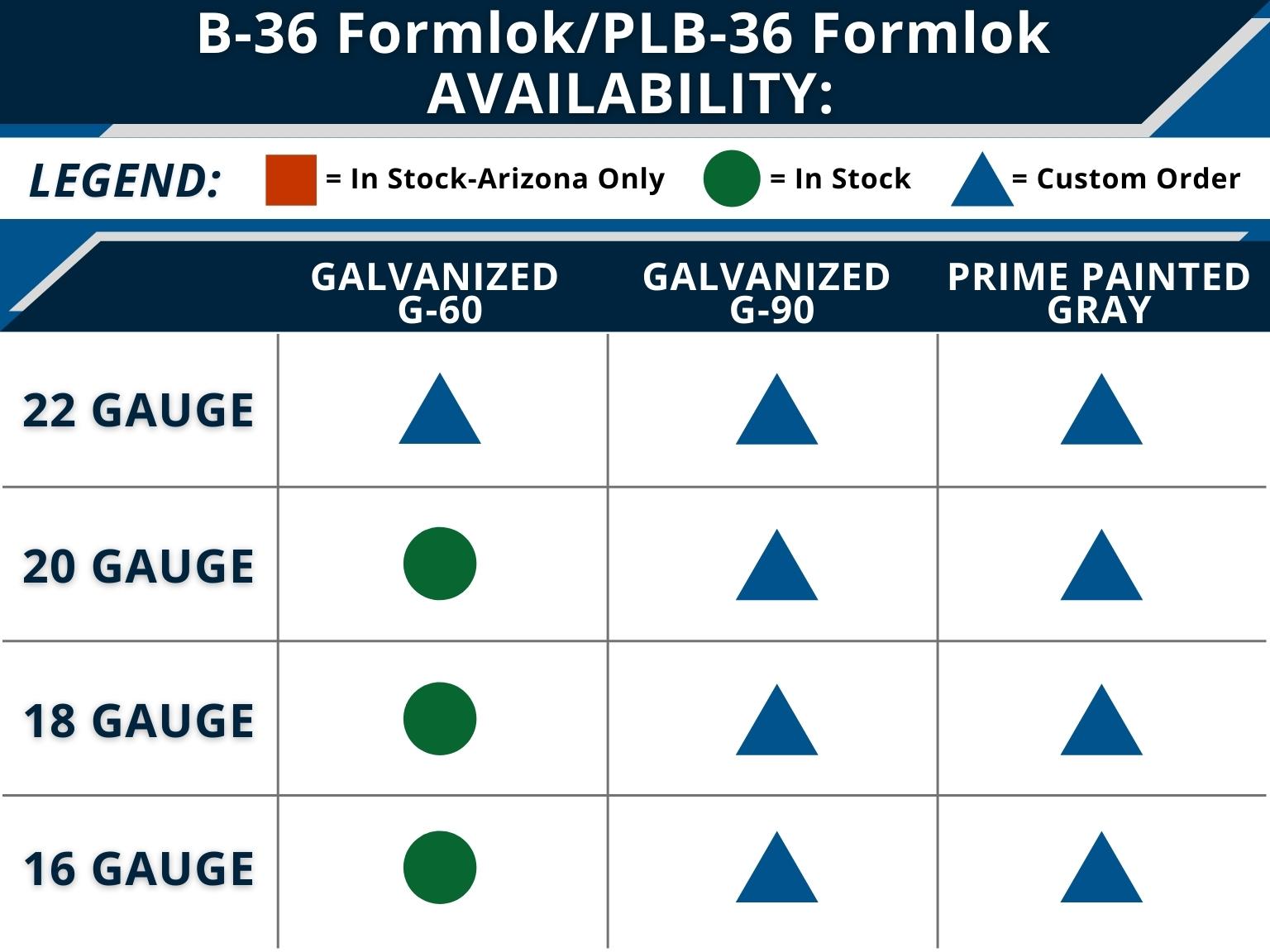

Available Gauges: 22, 20, 18, 16
Available Finishes:

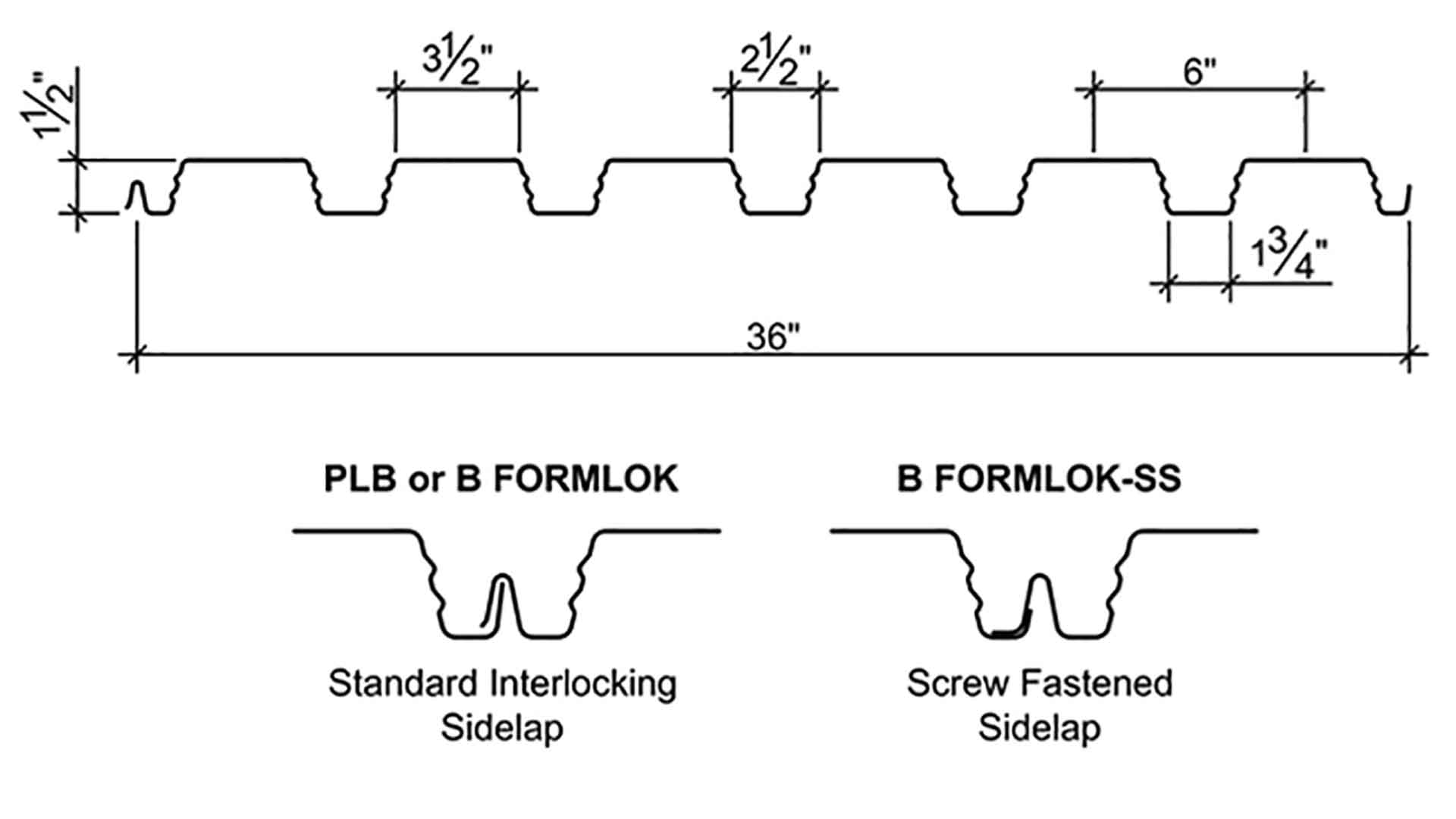

Rib Height: 1.5"
Rib Distance (Pitch): 6" Pitch
Available Lengths: 20'-2" to 35'-6"
Width: 36"
Button punch tool available for button punching or crimping seams of metal deck for easier welding.
Free loaner tools are available with the purchase of metal decking.
Every metal deck project requires additional accessories. Get everything you need all in one place, here at Metaldeck.com
Cell closure will close off the open ends of metal floor deck. This will prevent concrete spilling through ends of the metal deck.
These formed galvanized angles are used to create a stopping point for poured concrete. Edge form and pour stop for metal deck can be fabricated to custom sizes and gauges.
Button punch tool available for button punching or crimping seams of metal deck for easier welding.
The Parker Punch is a fast, high-volume pneumatic button punch that can save you time while providing strong, high-quality punches.
We are ready to provide you with shop drawings and metal deck packages for your next project. We can provide shop drawings that would include CAD drawings, metal deck cut list, gauge edge form, and shear stud layout.
