B Deck Stitch Screw Sidelap: HSB-36-SS

Verco HSB-36-SS is designed as a stitch screw side lap style of B decking. It's a metal roof deck that is meant to be used in short to medium span conditions. Same day pick up or next day delivery.

Get a quote See More Roof Deck Options

Everything that you need to know about B Decking
Metal Roof Decking Buyers Guide

Looking For Metal Floor Deck? We Offer A Variety Of Gauges, Lengths, and Depths.

Shop floor deck here

Verco HSB-36-SS

B Deck With Stitch Screw Sidelap - 1.5" Deep

B Deck with a stitch screw sidelap is strong, light weight, economical, and easy to install. Verco HSB-36-SS stands for High Shear B Deck @ 36" wide with a stitch screw side lap. This type of metal roof deck is designed to be screwed at the side lap and NOT welded. Normally stitch screw B Decking is used in short to medium span conditions ranging from 3 feet to 10 feet in distance.

HSB-36-SS is 1 1/2" deep and is available in galvanized and prime painted finishes. HSB-36-SS is good in stock in 20 Gauge, Galvanized G-90.

Immediate availability of Verco HSB-36-SS roof decking in lengths ranging from 8'-0" to 25'-6". Verco HSB-36-SS can be custom run to longer lengths, different gauges, or finishes if needed.

  • Pick Up Locations in Ontario, California and Phoenix, Arizona
  • Delivery Is Available Throughout The USA

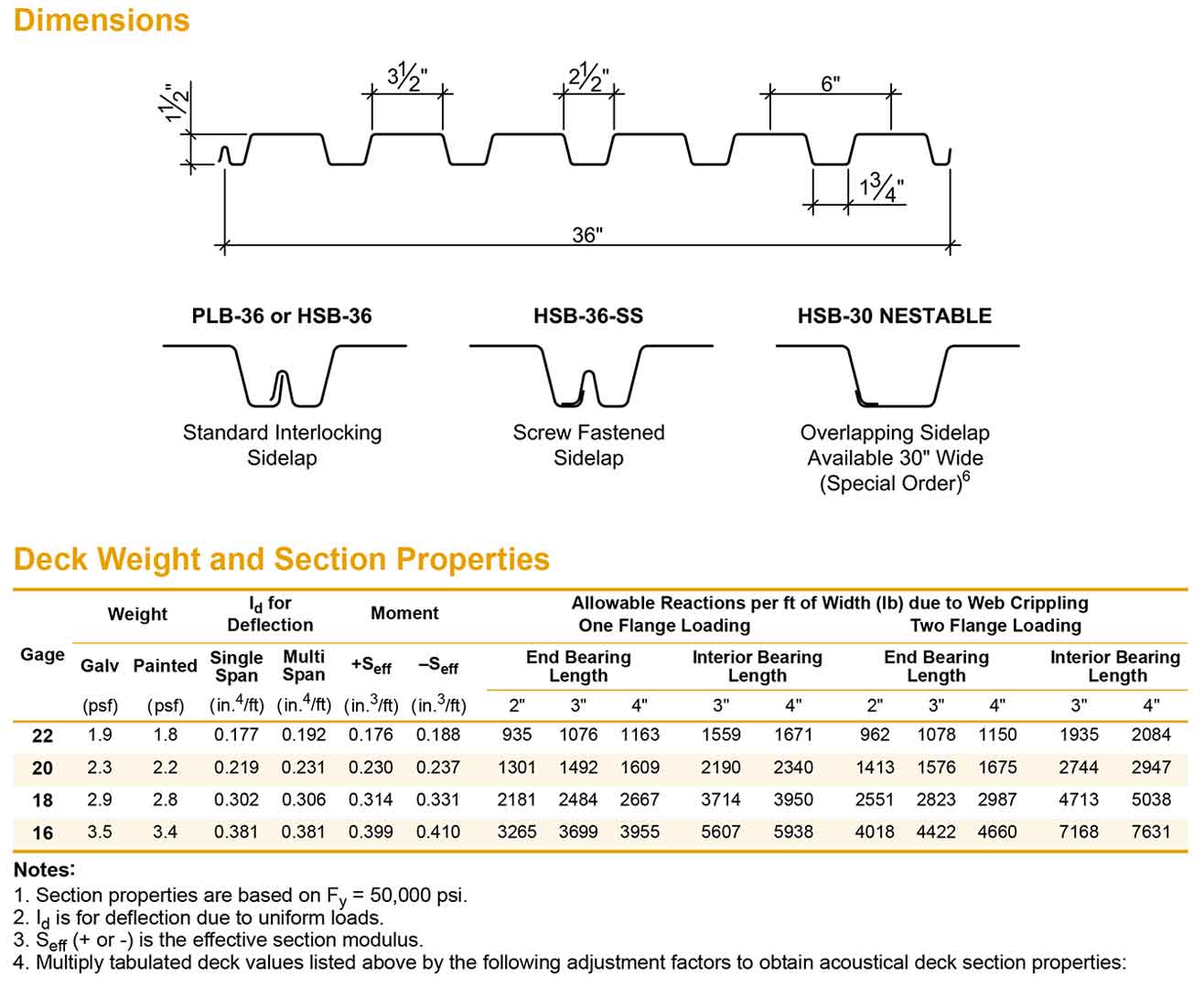

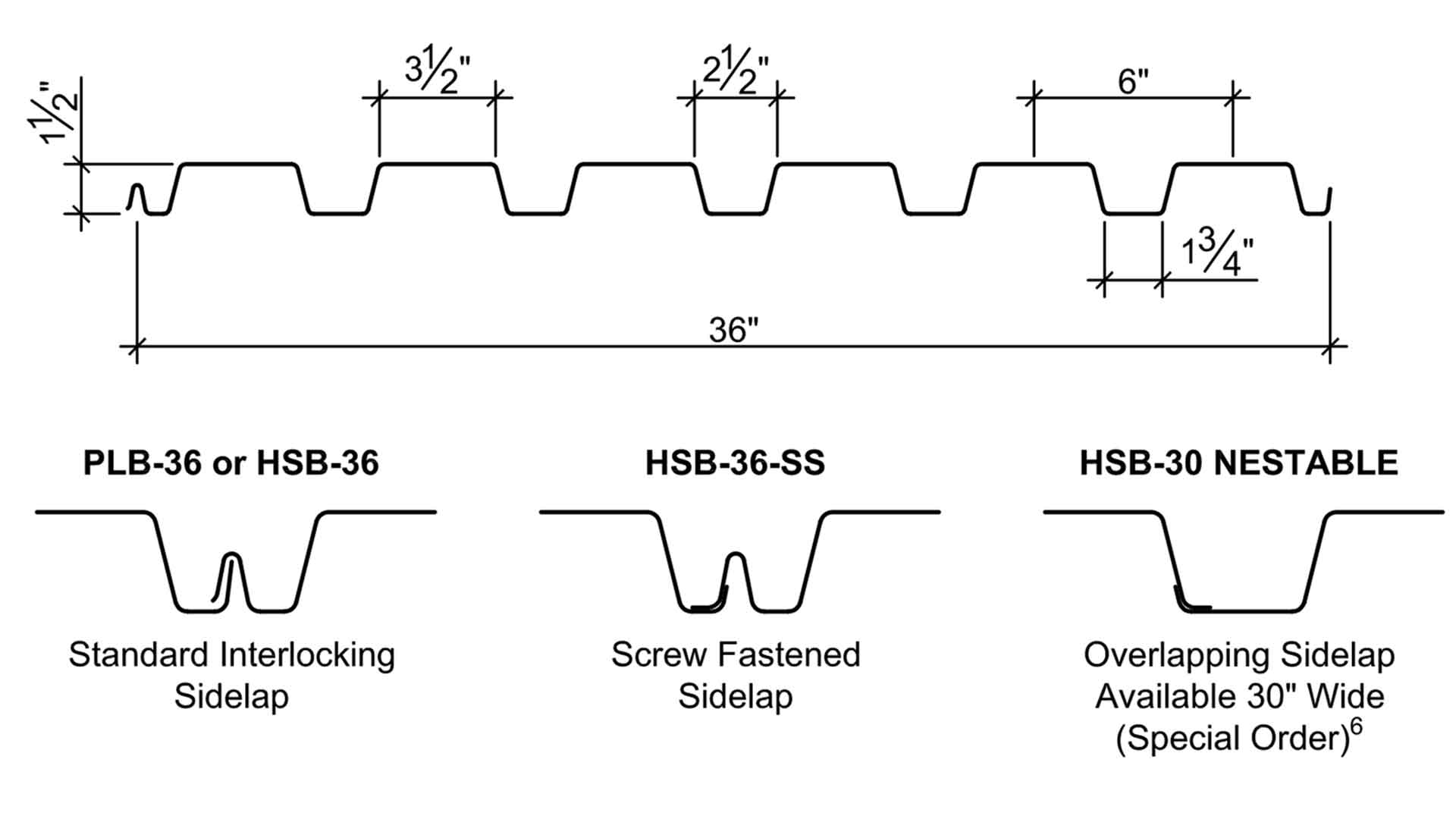

Dimensions

hsb-36-deck-profile download dimensions

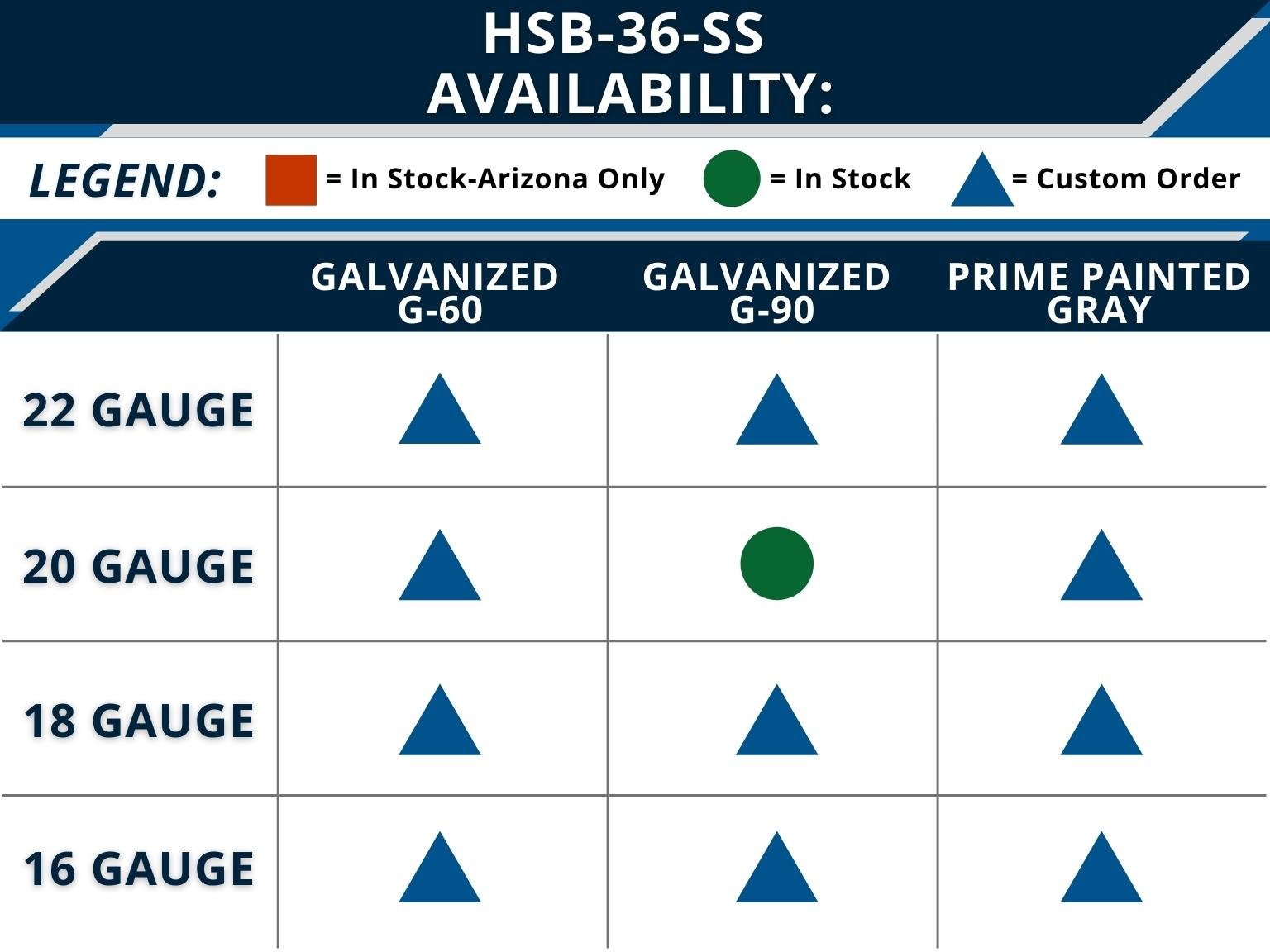

hsb-36-ss-graph



Product Data

Deck Type: Roof Deck

Panel Type: B Deck (HSB-36-SS)

Available Gauges: 22, 20, 18, 16

Available Finishes:

  • Galvanized G-60
  • Galvanized G-90
  • Prime Painted Gray

Rib Height: 1 1/2"

Rib Distance (Pitch): 6" Pitch

Available Lengths: 8'-0" to 25'-6"

Width: 36"

Product Documents

ASD Data Sheet For HSB-36/PLB-36

LRFD Data Sheet For HSB-36/PLB-36

IAPMO UES Report

Los Angeles Research Report

Roof Deck Catalog - VR4 Legacy

Roof Structure Design Guide

Autocad

Roof Deck Design Tools

UL Reports - Fire Rated Assemblies

Factory Mutual Reports

Steel Deck Institute (SDI)

Environmental

Button Punch Tool

Button punch tool available for button punching or crimping seams of metal deck for easier welding.

Free loaner tools are available with the purchase of metal decking.

Buy Now Rent Now Free Loaner Tool
