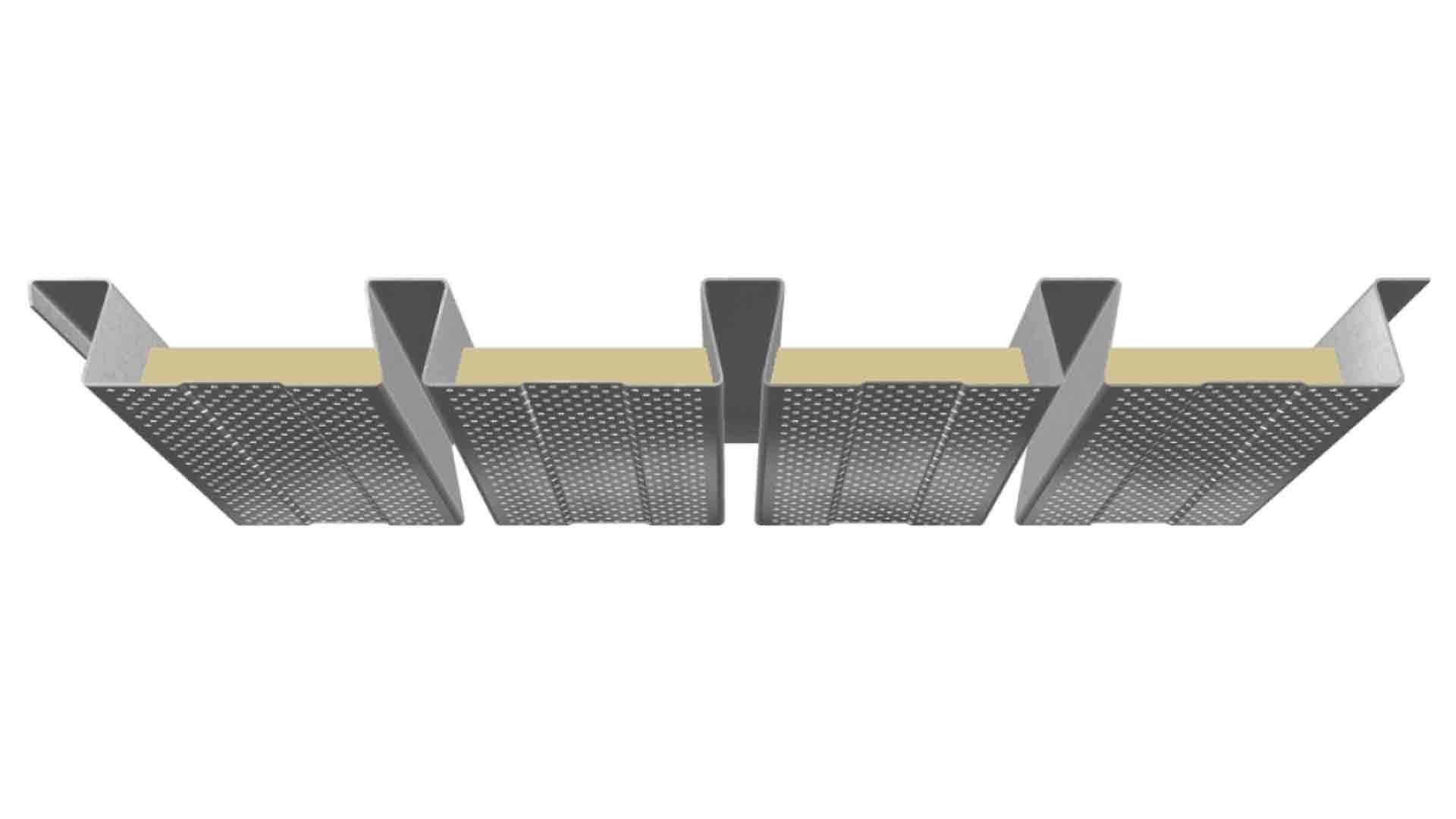

Acoustical Dovetail roof deck is the perfect when you need a structural metal deck, sound control, and a ceiling that looks finished.
Acoustical Dovetail deck is offered with a variety of options to meet a broad range of project requirements. Verco and Vulcraft Dovetail deck include acoustical as well as non-acoustical versions, and a variety of finishes.
Acoustical Dovetail deck is a custom ordered product. Typical lead times is 4 to 8 weeks.

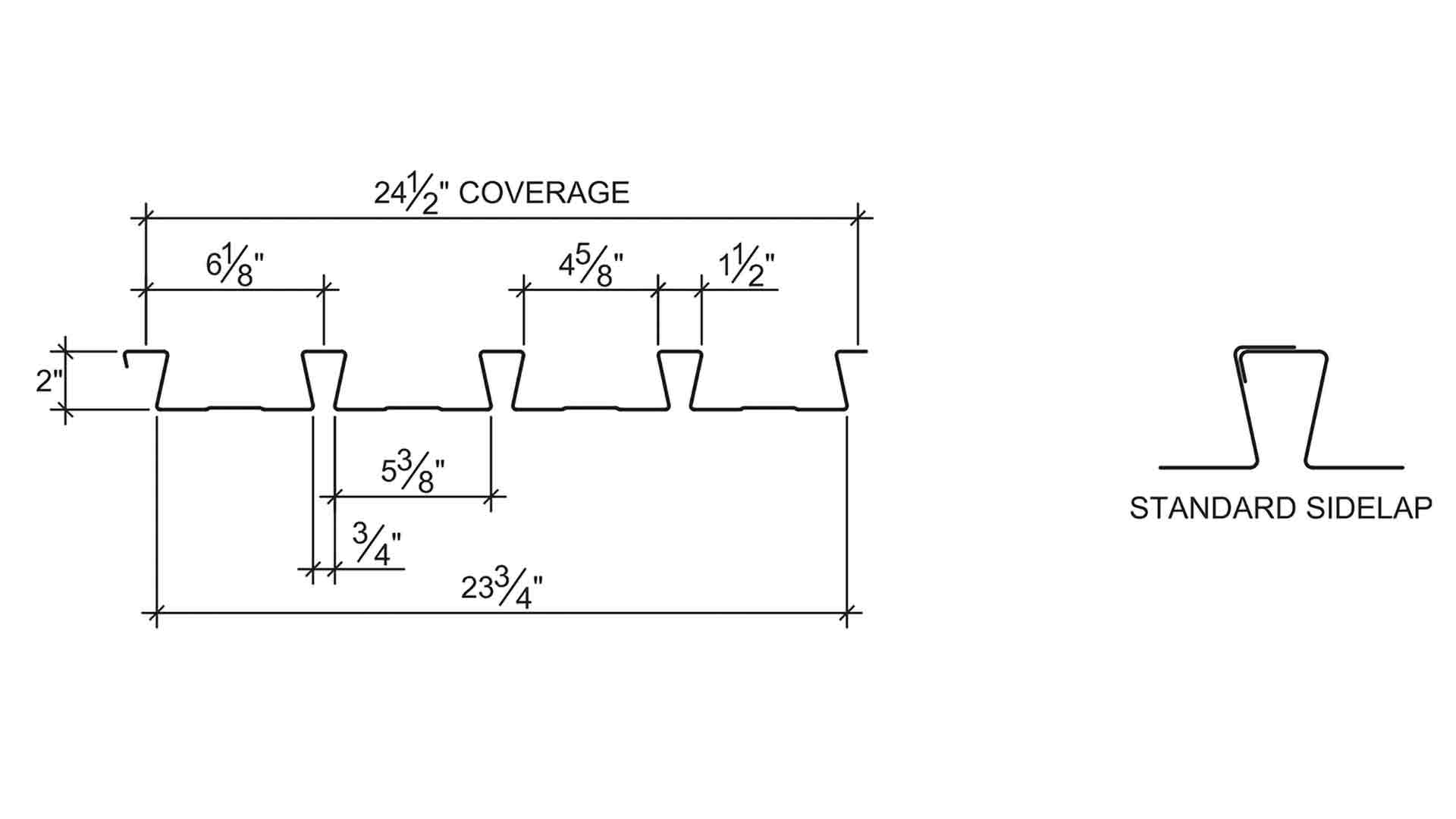

Deck Type: Dovetail Deck
Panel Type: 2.0DA Acoustical
Rib Height: 2"
Rib Distance (Pitch): 6 1/8" Pitch
Width: 24 .5" Coverage

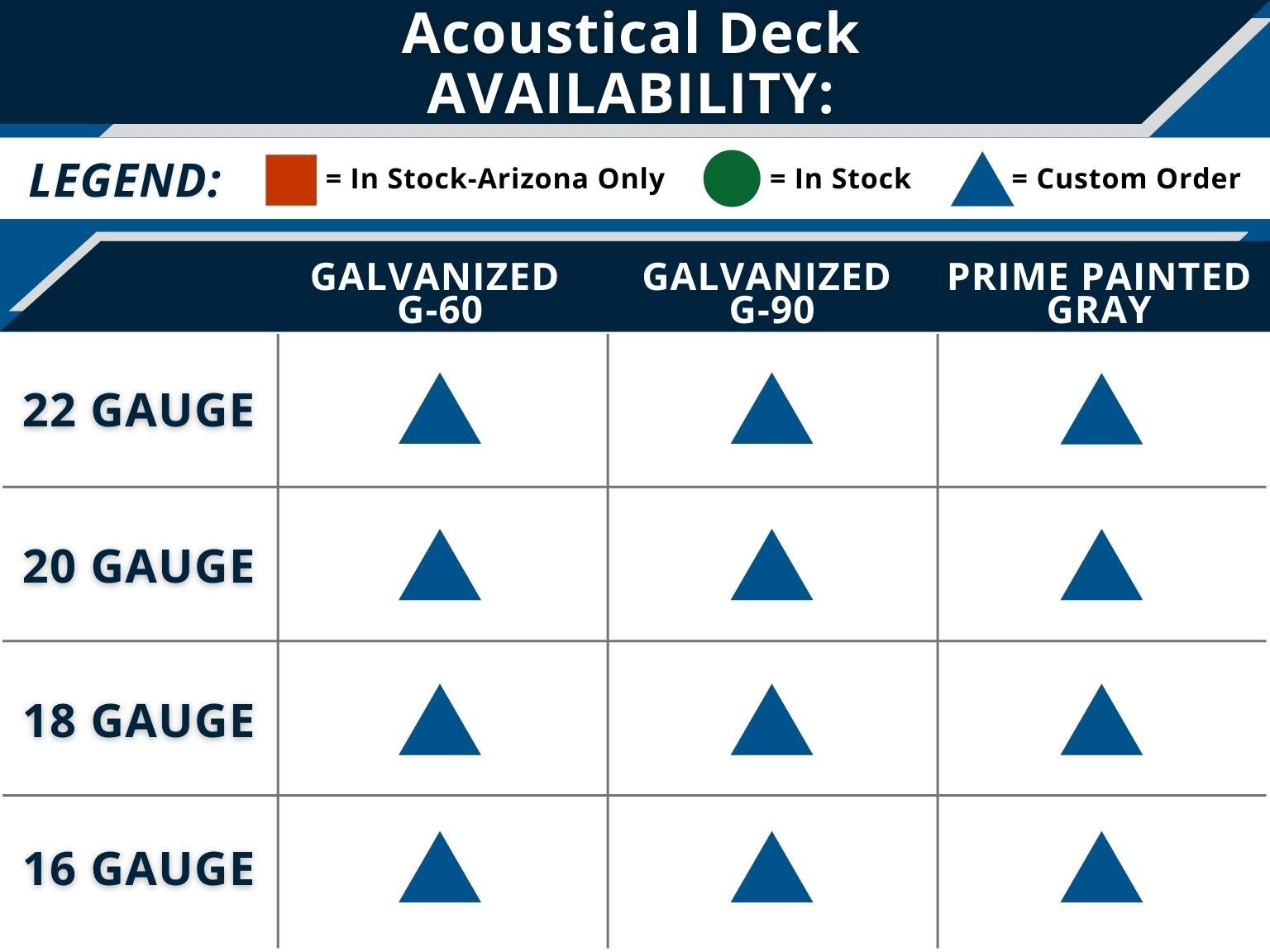

Available Gauges: 22, 20, 18, 16
Available Sheet Lengths: 6' to 42'
ASD Data Sheet For Dovetail Acoustical 2" Deck
LRFD Data Sheet For Dovetail Acoustical 2" Deck
Roof Deck Catalog - VR4 Legacy
UL Reports - Fire Rated Assemblies
We are ready to provide you with shop drawings and metal deck packages for your next project. We can provide shop drawings that would include CAD drawings, metal deck cut list, gauge edge form, and shear stud layout.
