PLB-36 AC: Acoustical Punchlok II Roof Decking

PLB-36 AC is an acoustical metal roof decking that has a "Punchlok" sidelap. The sidelap of these panels must be crimped by using a Punchlok II Tool. These tools will be loaned out after the metal decking is purchased.

How To Get A Punchlok II Tool For Verco And Vulcraft Metal Decking

PLB-36 AC Acoustical Decking - 1.5" Deep

Acoustical metal decking can provide sound attenuation in buildings where the deck is exposed to the interior. The use of all acoustical deck is limited to non-fire-resistive assemblies. Verco’s fluted acoustical Punchlok B deck is made by perforating the webs of a standard Verco deck profile. PLB-36-AC metal deck types has perforations in 10 of the 12 webs. The webs adjacent to the sidelaps of PLB-36-AC are not perforated. The roofing contractor installs the acoustical insulation batts(supplied with the deck) prior to the placement of roofing insulation.

PLB-36 and HSB-36 panels are identical in both geometry and material properties. The prefix "PL" designates a PunchLok II version of the B profile, while "HS" (high shear) indicates a top seam weld, button punch, or screw version of the same profile. When the job is specified as Punchlok II, then a Punchlok II tool must be used for the sidelap attachment. This method of attachment allows for higher shear values and must be done correctly or the building design could fail.

PLB-36 AC is NOT in stock. Custom ordered jobs only. Minimum quantities apply.

  • Pick Up Locations in Ontario, California and Phoenix, Arizona
  • Delivery Is Available Throughout The USA

PRODUCT DATA

Deck Type: Acoustical Punchlok

Panel Type: PLB-36 AC

Available Gauges: 22, 20, 18, 16

Available Sheet Lengths: 2' to 40'

Available Finishes:

  • Galvanized G-60
  • Galvanized G-90
  • Prime Painted Gray

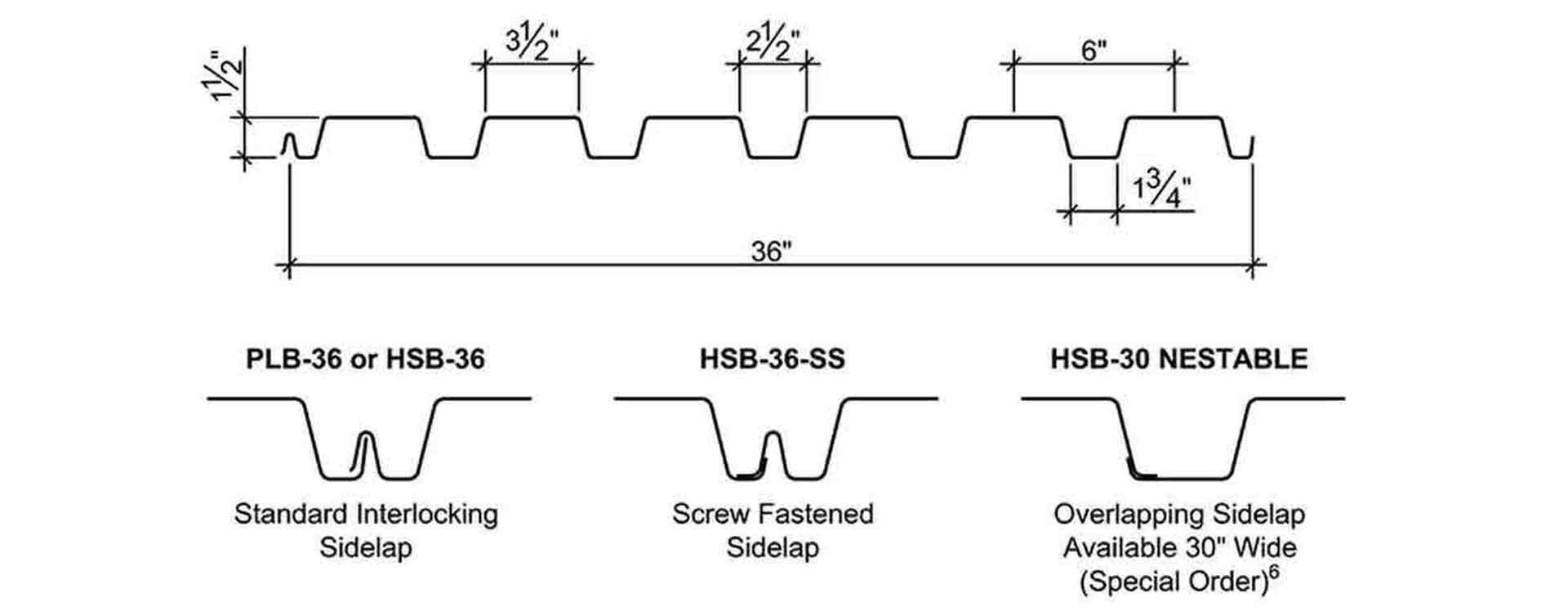

PLB-36 ACOUSTICAL DECK DIMENSIONS

Rib Height: 1.5"

Rib Distance (Pitch): 6" Pitch

Width: 36"




Material Availability:acoustical-deck-graph



Button Punch Tool

Button punch tool available for button punching or crimping seams of metal deck for easier welding.

Free loaner tools are available with the purchase of metal decking.

Buy Now Rent Now Free Loaner Tool

button-punch-man
