Deep Vercor: 1 5/16" Steel Form Deck

Verco type Deep Vercor form deck is strong, light weight, economical, and easy to install. It's used either as a form deck to pour concrete, metal siding, and metal roofing. It should not be used as a composite metal floor deck system.

Get a quote see more form deck options

Everything That You Need To Know About Form Decking

Looking For Metal Roof Deck? We Offer A Variety Of Gauges, Lengths, and Depths.

Shop roof deck here

1 5/16" Deep Steel Form Decking

Deep Vercor™

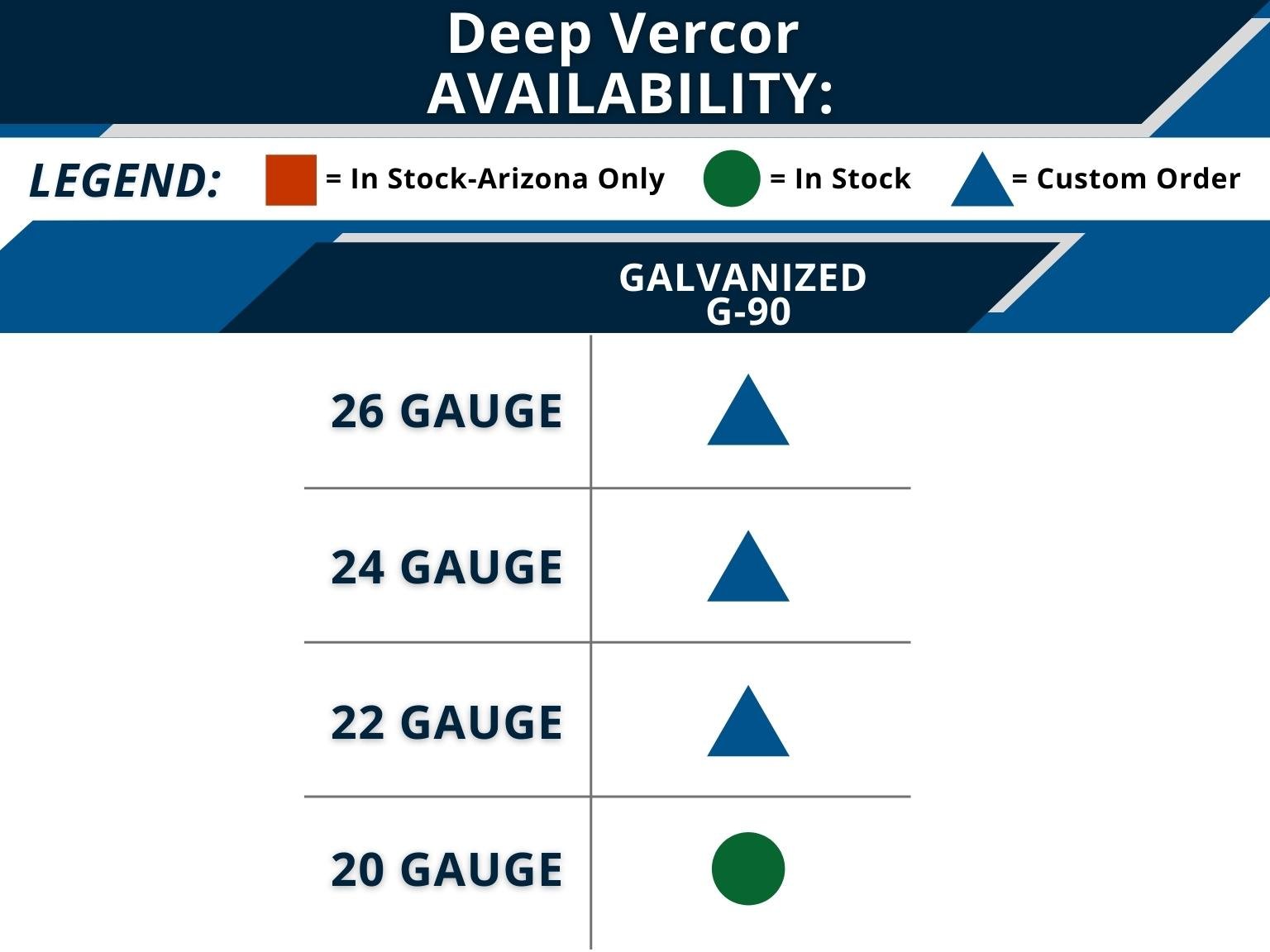

Verco Deep Vercor is a non-composite form decking. It's 1 5/16" deep and is in stock in a 20 gauge thickness and a galvanized G90 finish.

Immediate availability of steel form decking in lengths ranging from 2' to 30'-6". Form deck can be custom run to longer lengths if needed.

  • Pick Up Locations in Ontario, California and Phoenix, Arizona
  • Delivery Is Available Throughout The USA

Dimensions

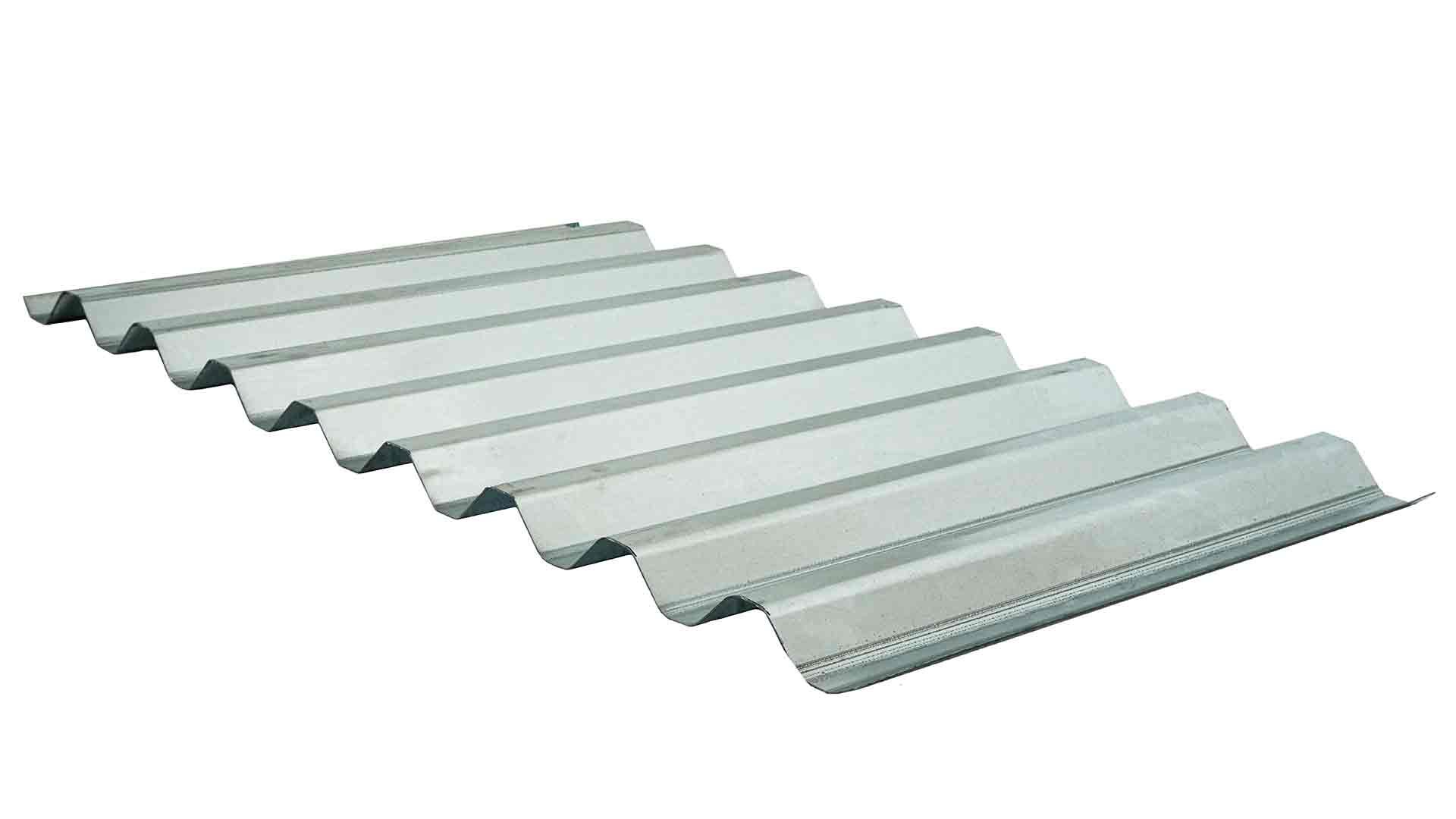

deep-vercor-deck-profile Download Dimensions

deep-vercor-graph



Product Data

Deck Type: Form Decking

Panel Type: Deep Vercor™

Available Gauges: 26, 24, 22, 20

Available Finishes:

  • Galvanized G-90

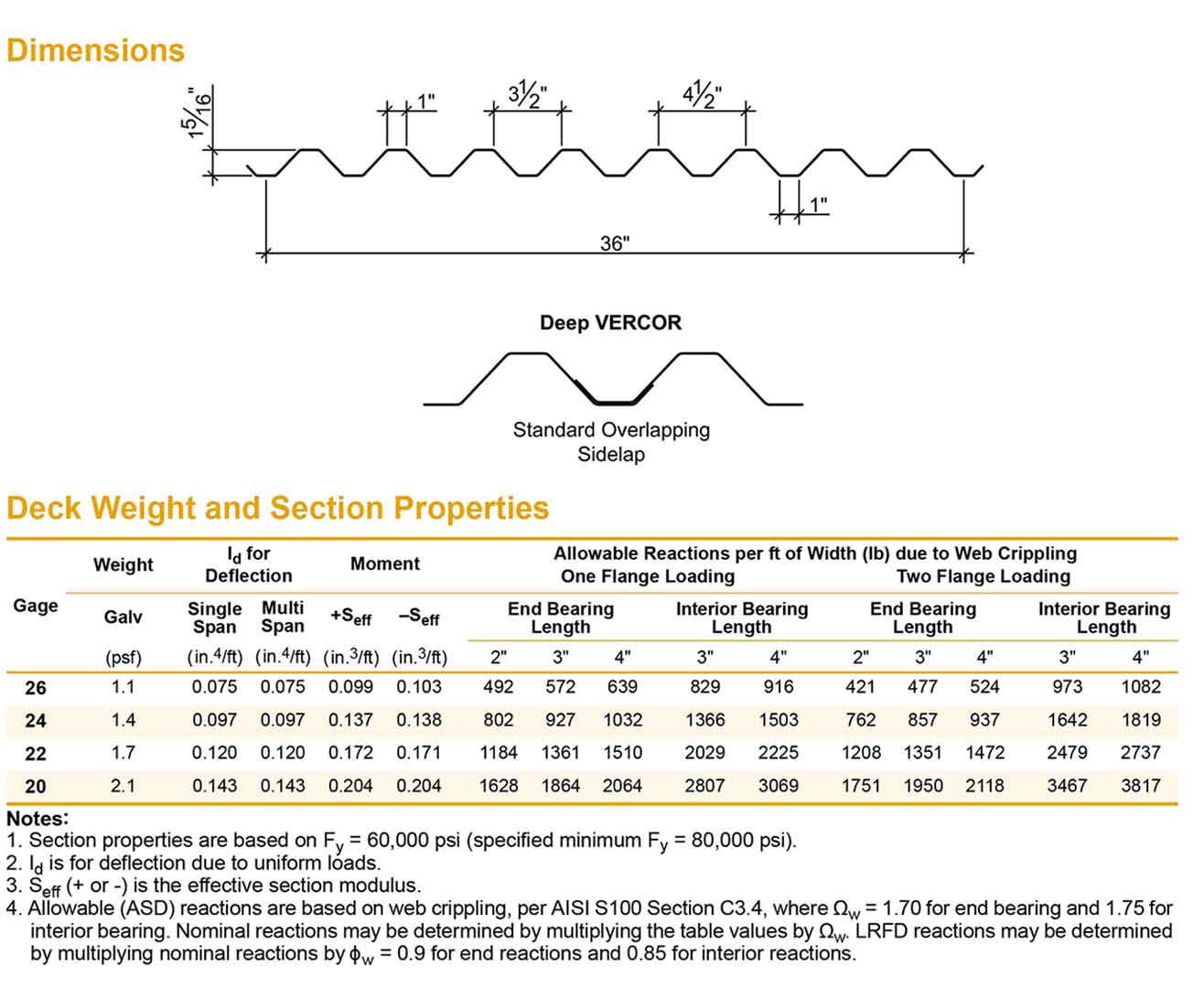

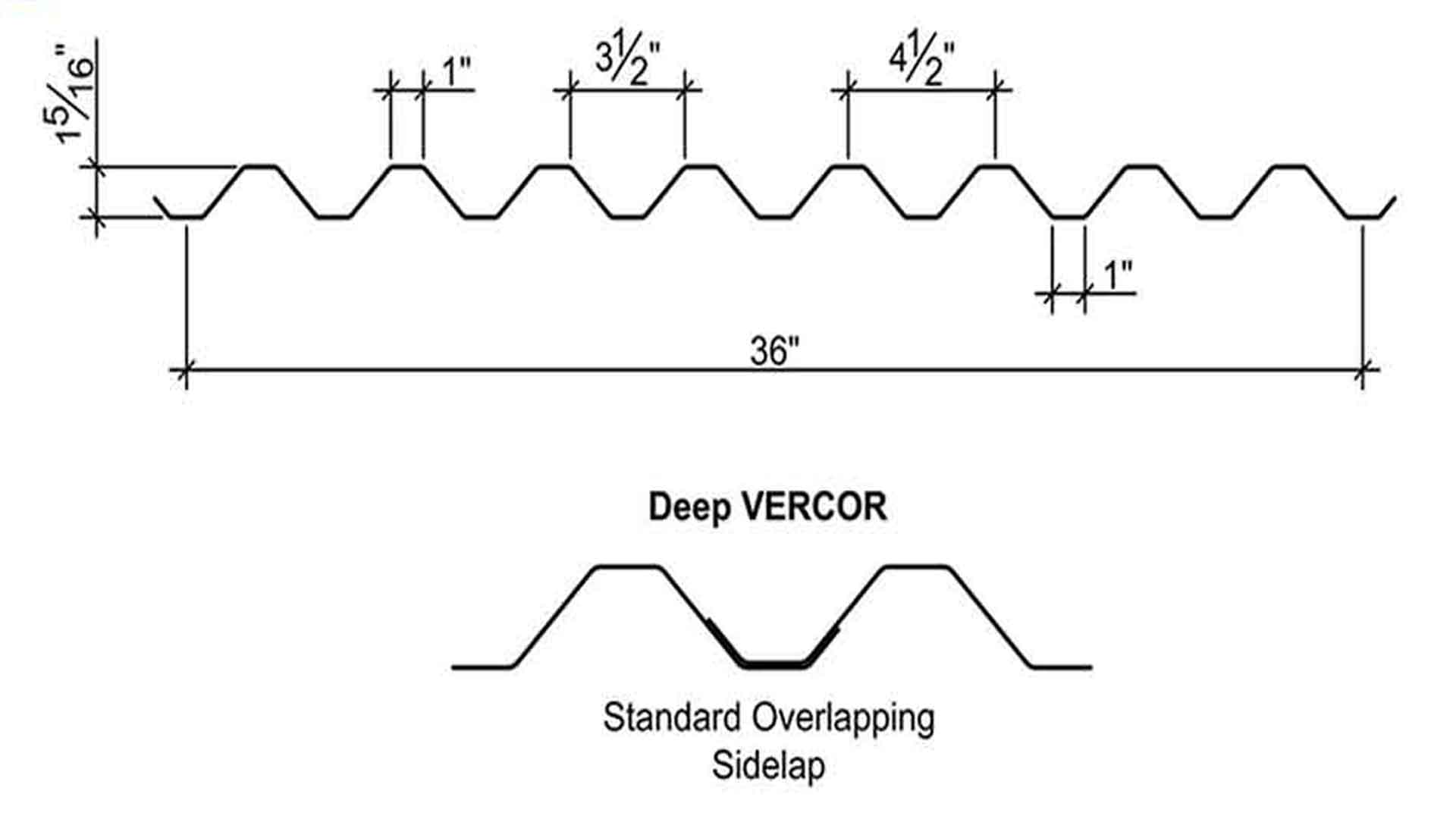

Deep Vercor™ Dimensions

Rib Height: 1 5/16"

Rib Distance (Pitch): 4 1/2" Pitch

Available Lengths: 20'-6" to 30'-6"

Width: 36"

Product Documents

ASD Data Sheet For Deep Vercor

LRFD Data Sheet For Deep Vercor

IAPMO UES Report

Los Angeles Research Report

Roof Deck Catalog - VR4 Legacy

Autocad

Floor Deck Design Tools

UL Reports - Fire Rated Assemblies

Factory Mutual Reports

Steel Deck Institute (SDI)

Environmental

Don't forget the accessories!

RELATED PRODUCTS

Every metal deck project requires additional accessories. Get everything you need all in one place, here at Metaldeck.com


Foam Closures

Prevents moisture, insects, and light from getting inside or beneath the raised portions of metal decking panels.

  • Individual Foam Plugs
  • Foam Closure Strips

View Product


Fasteners

Metal deck is normally welded or pinned to the steel. However, you can still need screws in canopy applications and for stitch screw side lap decking.

View Product


Button Punch Tool

Button punch tool available for button punching or crimping seams of metal deck for easier welding.

  • Buy
  • Rent
  • Free Loaner Tool With Metal Deck Purchase

View Product


Parker Punch Tool

The Parker Punch is a fast, high-volume pneumatic button punch that can save you time while providing strong, high-quality punches.

View Product

Shop Drawings & Metal Deck Packages Available

Shop Drawings

We are ready to provide you with shop drawings and metal deck packages for your next project. We can provide shop drawings that would include CAD drawings, metal deck cut list, gauge edge form, and shear stud layout.
