3" Type N Deck: Metal Roof Decking

Verco N-24 is a long span roof style of N decking. This panel is used during long-span conditions and is easy to install. Same day pick up or next day delivery.

Get a quote See More Roof Deck Options

N-24 Vs HSN3-32: Which Is Better?
Read blogs, watch videos, read reports & much more

Looking For Metal Floor Deck? We Offer A Variety Of Gauges, Lengths, and Depths.

Shop floor deck here

Verco N-24

N Deck Long Span Roof Deck - 3" Deep

N Deck is strong, light weight, economical, and easy to install. This panel is used in long span conditions ranging from six feet to sixteen feet in distance. N-24 Deck is 3" deep and is available in galvanized and prime painted finishes. N Deck is good in stock in the following gauges 20, 18, 16 Gauge.

Immediate availability of Verco N-24 Deck roof decking in lengths ranging from 20'-6" to 35'-6". Verco N-24 Deck material can be custom run to longer or shorter lengths if needed.

  • Pick Up Locations in Ontario, California and Phoenix, Arizona
  • Delivery Is Available Throughout The USA

Dimensions

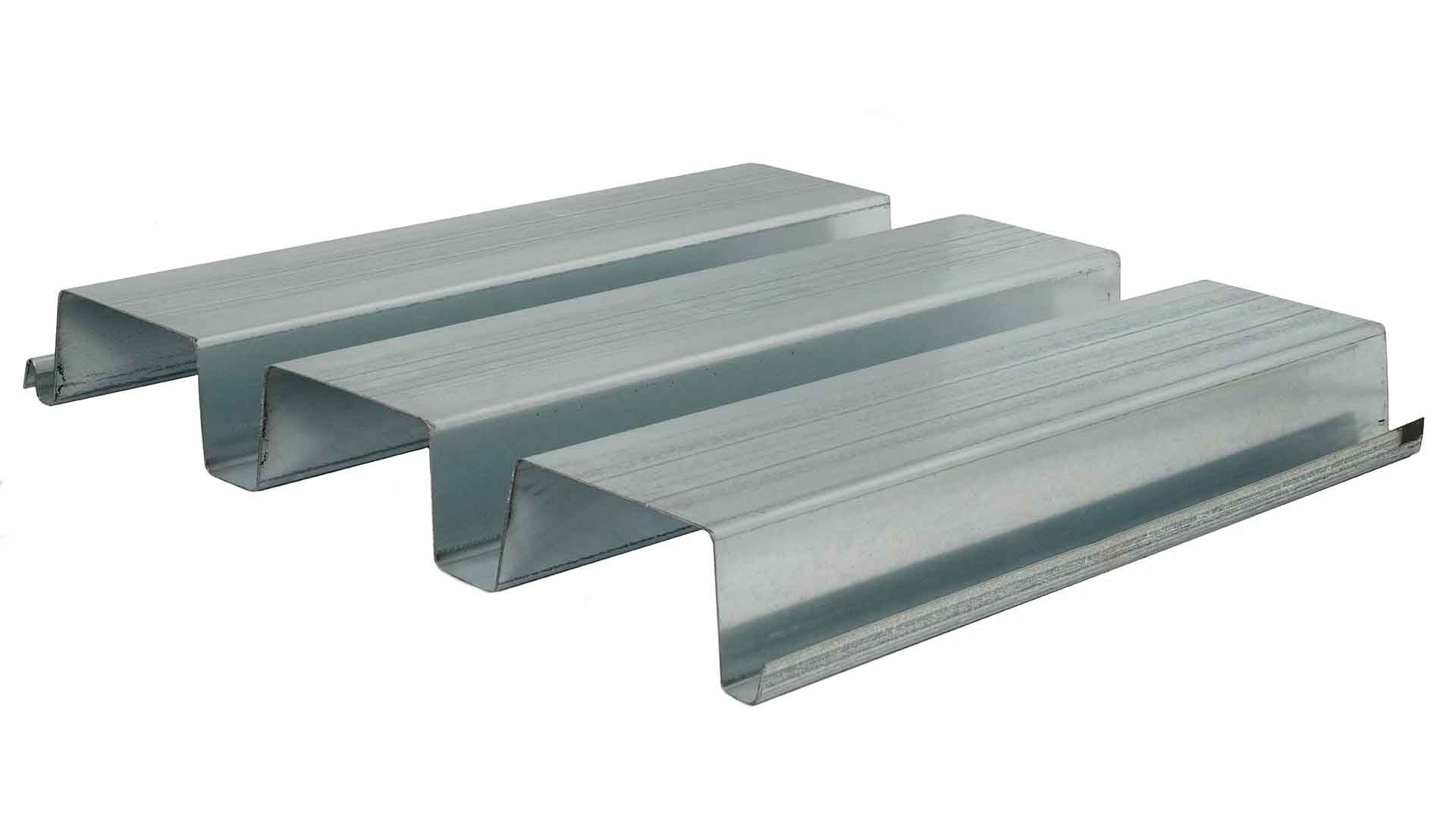

n-24-deck-profile download dimensions

N-Deck-Graph



Product Data

Deck Type: Roof Deck

Panel Type: N Deck (N-24)

Available Gauges: 22, 20, 18, 16

Available Finishes:

  • Galvanized G-60
  • Galvanized G-90
  • Prime Painted Gray

Rib Height: 3"

Rib Distance (Pitch): 8" Pitch

Available Lengths: 20'-6" to 35'-6"

Width: 24"

Product Documents

ASD Data Sheet For PLN-24/N-24

LRFD Data Sheet For PLN-24/N-24

IAPMO UES Report

Los Angeles Research Report

Roof Deck Catalog - VR4 Legacy

Roof Structure Design Guide

Autocad

Roof Deck Design Tools

UL Reports - Fire Rated Assemblies

Factory Mutual Reports

Steel Deck Institute (SDI)

Environmental

Button Punch Tool

Button punch tool available for button punching or crimping seams of metal deck for easier welding.

Free loaner tools are available with the purchase of metal decking.
