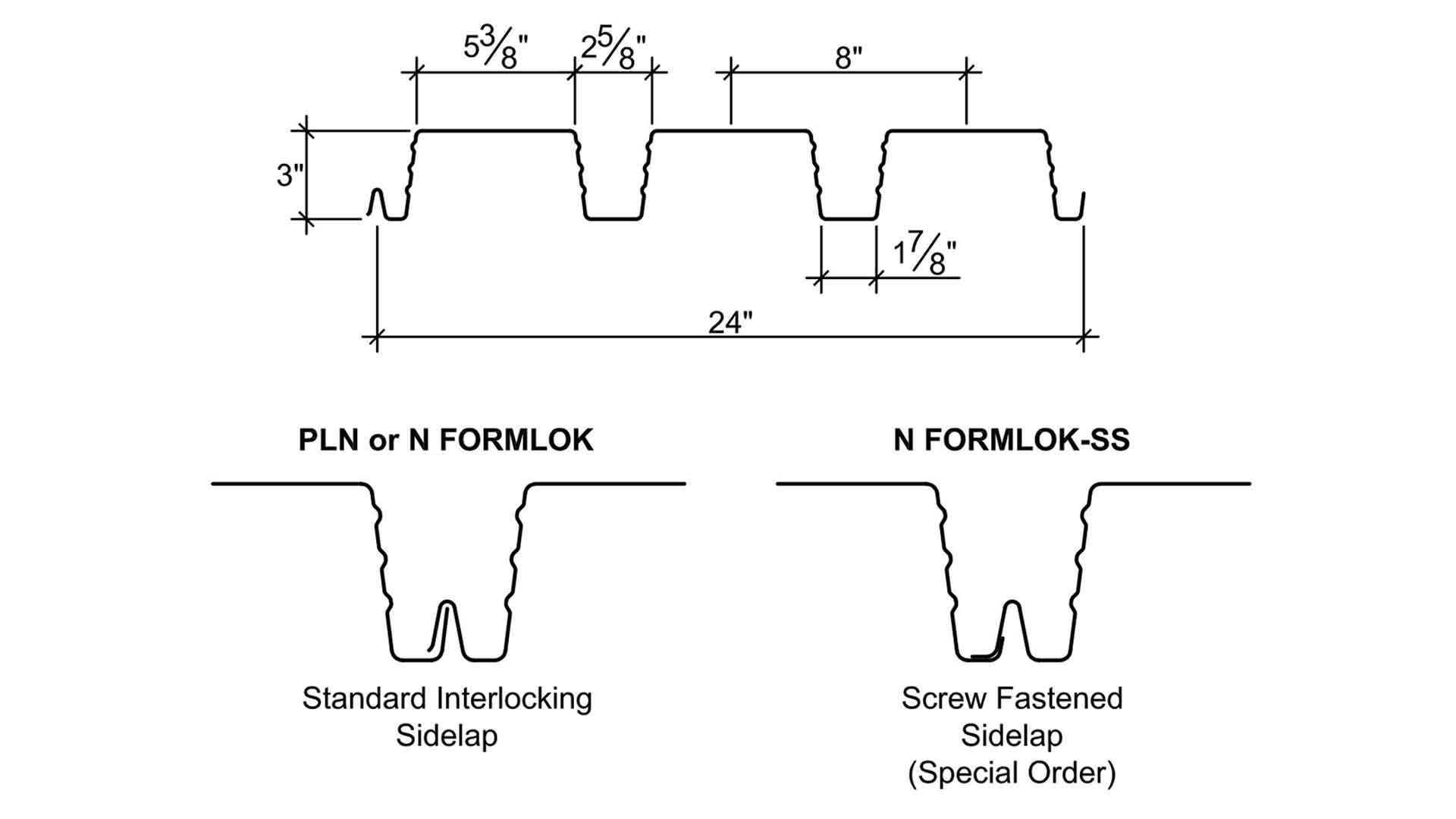

The main difference between the PLN-24 Formlok profile and N-24 Formlok profile is the method of sidelap attachment; the panels themselves are identical in both geometry and material properties. The prefix "PL" designates a PunchLok II version of this profile. Same day pick up or next day delivery.
Looking For Punchlok II Roof Deck? We Offer A Variety Of Gauges, Lengths, and Depths.

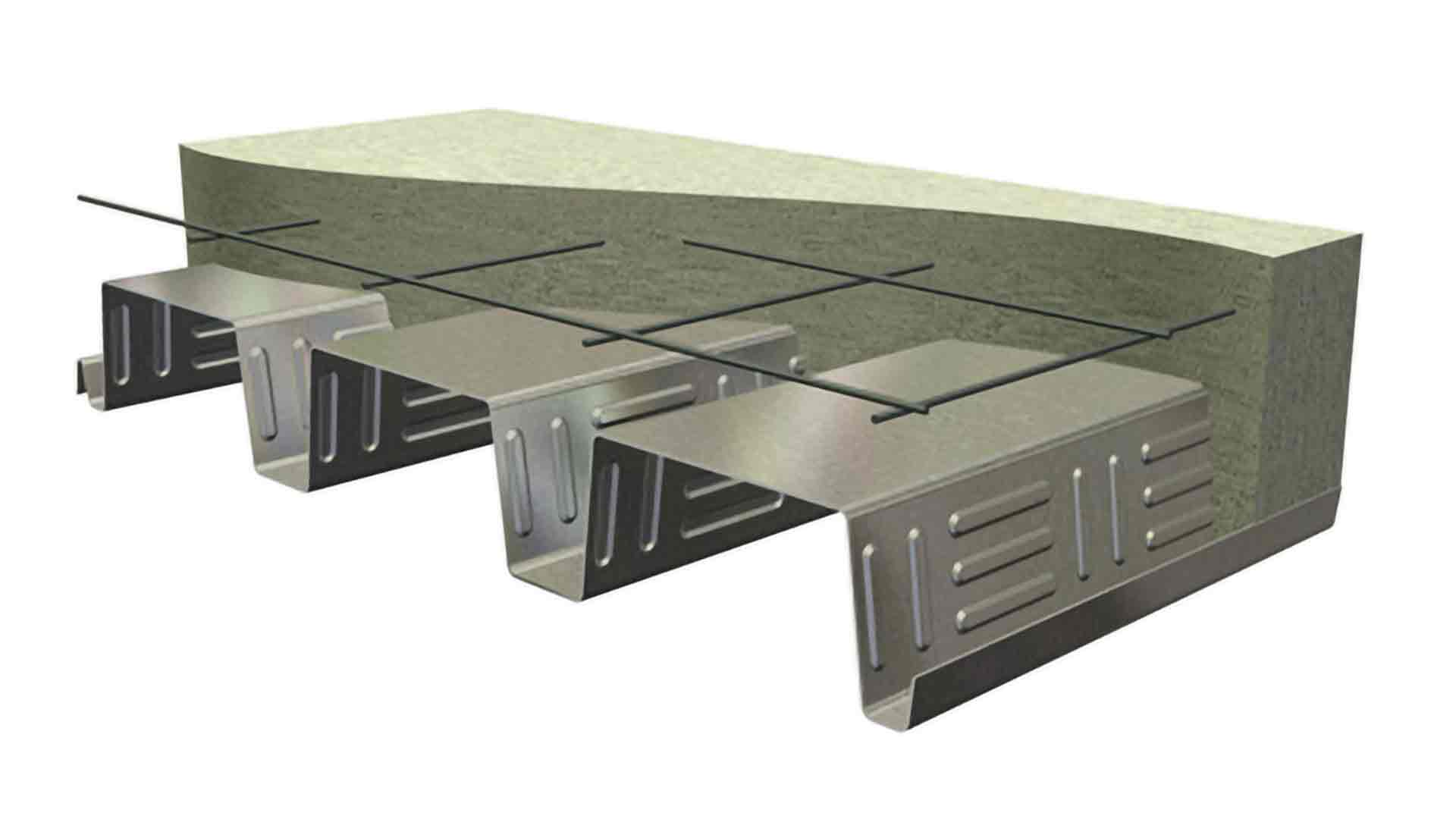

Verco PLN-24 Formlok™ metal floor deck provides savings by the elimination of temporary forms and shoring. It allows for immediate use of the metal deck as a working platform for all trades.

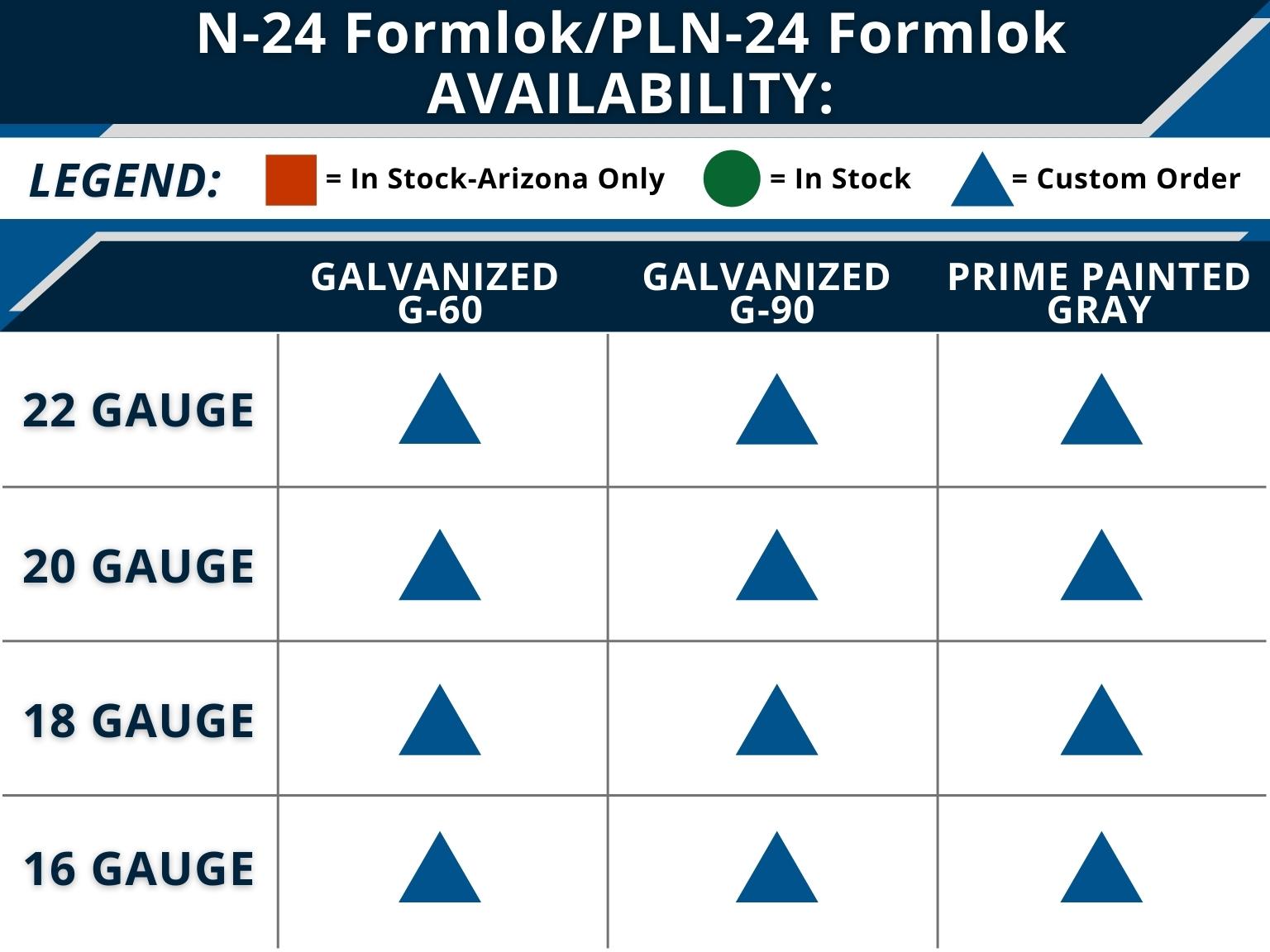

PLN-24 Formlok is 3" deep and is not in stock and must be custom ordered. It can be custom ordered in G60/G90 or phosphatized/prime painted finishes.
Deck Type: Punchlok II Floor Deck
Panel Type: PLN-24 Formlok™
Available Gauges: 22, 20, 18, 16 (Custom Order)
Rib Height: 3"
Rib Distance (Pitch): 8" Pitch
Available Lengths: Custom Ordered
Every metal deck project requires additional accessories. Get everything you need all in one place, here at Metaldeck.com
Cell closure will close off the open ends of metal floor deck. This will prevent concrete spilling through ends of the metal deck.
These formed galvanized angles are used to create a stopping point for poured concrete. Edge form and pour stop for metal deck can be fabricated to custom sizes and gauges.
Button punch tool available for button punching or crimping seams of metal deck for easier welding.
The Parker Punch is a fast, high-volume pneumatic button punch that can save you time while providing strong, high-quality punches.
We are ready to provide you with shop drawings and metal deck packages for your next project. We can provide shop drawings that would include CAD drawings, metal deck cut list, gauge edge form, and shear stud layout.
Learn more about metal decking and what it's used for. From instructional videos to informative articles, you're sure to find the answers you're looking for when it comes to roof deck and floor deck.
